The Wouxun KG-805 Series consists of high end, professional grade radios at a consumer level price. The KG-805G is the 5 watt GMRS version and the KG-805M is the 2 watt MURS model. Although they operate on different bands, frequencies and services, both radios share the same core features and functions. Both are also user programmable. Here is an overview of the Wouxun KG-805G and KG-805M programming and menu options.
The KG-805 radios share many of the same features as the popular and venerable KG-UVD1P, as well as many of the same physical characteristics. This is because the KG-805 series is directly based on that model.
KG-805 Key Features
- 22 GMRS Channels (GMRS Version)
- 8 GMRS Repeater Channels (GMRS Version)
- 5 MURS Channels (MURS Version)
- 5W Maximum Transmit Power (GMRS Version)
- 2W Maximum Transmit Power (MURS Version)
- 128 Memory Channels
- 155 CTCSS Tones/DCS Codes
- Selectable 3 Color Backlit LCD Display
- Multi-Display Modes
- Backlit Front Panel Keys
- 3 Scan Options
- English Voice Prompts
- VOX
- Timeout Timer
- Alarm Function
- Priority Scan Function
- FM Radio w/ Frequency Display
- Busy Channel Lockout
- Low Voltage Prompt
- Key Lock
- Power Save
- PC Programmable
- Reset
- Roger Beep Enable/Disable
- IP55 Waterproof
Programming the KG-805
Programming The Wouxun KG-805G and KG-805M is essentially the same. You can do it direct from the front panel keys of the radio or through a PC using the Wouxun KG-805 programming software.
Direct from the radio
Customizing the KG-805 directly from the radio itself is much like configuring most consumer grade FRS and GMRS walkie talkies, and is pretty straightforward. Press the MENU key on the radio, go through the various menu options, and choose the items you want to enable, change, disable or set. The only real difference is the feature set itself. There are the standard options you'll find on most other radios, and then there are a few fancier features that are unique to the 805 series.
The KG-805 menu consists of 23 menu options. Default settings are bold.
Menu # | Menu Item | Description | Option |
---|---|---|---|
01 | SQL-LE | Squelch level settings | 0 (off)-9 (full)|5 |
02 | SAVE | Power Save settings | ON|OFF |
03 | ROGER | Transmission prompt settings | BOT|EOT|BOTH|OFF |
04 | TOT | Timeout Timer | 15-6000|60 |
05 | VOX | VOX function | 1-10OFF |
06 | TOA | Transmission overtime alarm | 1-10 seconds|OFF|5 |
07 | VOICE | voice prompt settings | CHINESE|ENGLISH|OFF |
08 | BEEP | beep prompt settings | ON|OFF |
09 | PONMSG | Power On Message | OFF|BATT-V|MSG |
10* | BCL | Busy Channel Lockout | ON|OFF |
11 | AUTOLOCK | Keypad auto lock | ON|OFF |
12 | R-CTC | Receiving CTCSS | 1-50|OFF |
13 | T-CTC | Transmitting CTCSS | 1-50|OFF |
14 | R-DCS | Receiving DCS | 1-105|OFF |
15 | T-DCS | Transmitting DCS | 1-105|OFF |
16 | SC-REV | Scan Mode | SE|TO|CO |
17 | PF1 | Side key setting | RADIO|SCAN|LAMP |
18 | PF2 | Alarm button setting | ALARM|OFF |
19 | CH-MDF | Display Setting Mode | NAME|CH|FREQ |
20 | WT-LED | Standby backlight color | PURPLE|OFF|BLUE|ORANGE |
21 | RX-LED | RX backlight color | BLUE|ORANGE|PURPLE|OFF |
22 | TX-LED | TX backlight color | ORANGE|PURPLE|OFF|BLUE |
23 | CH-NAME | Editing channel name | Name*** |
*Note: The menu item in red is available in the menu for display only. It can be modified through optional programming software.
Programming with software
The KG-805 uses the same standard USB programming cable used by many other popular Wouxun radios equipped with a Kenwood style (K1) connector port. In fact, if you already have a programming cable for an analog transciever such as a Baofeng UV-5R, TYT TH-UV88 or other Wouxun radio, chances are you're all set. If you don't, you will need the PCO-001 or XLT Painless Programming Cable. The XLT cable is highly recommended for ease of installation and peace of mind.
Unlike the programming cable, the Wouxun KG-805 programming software is specific to the KG-805 radio series and is currently available for Windows PCs only. In addition to the software, code plugs are available for each model. These are the KG-805G software defaults code plug and KG-805M software defaults code plug, respectively. The software and code plugs are available as free downloads from Buy Two Way Radios.
KG-805 Operation
Working the KG-805G and KG-805M is exactly same, as both are essentially the same radio, only using different radio services.

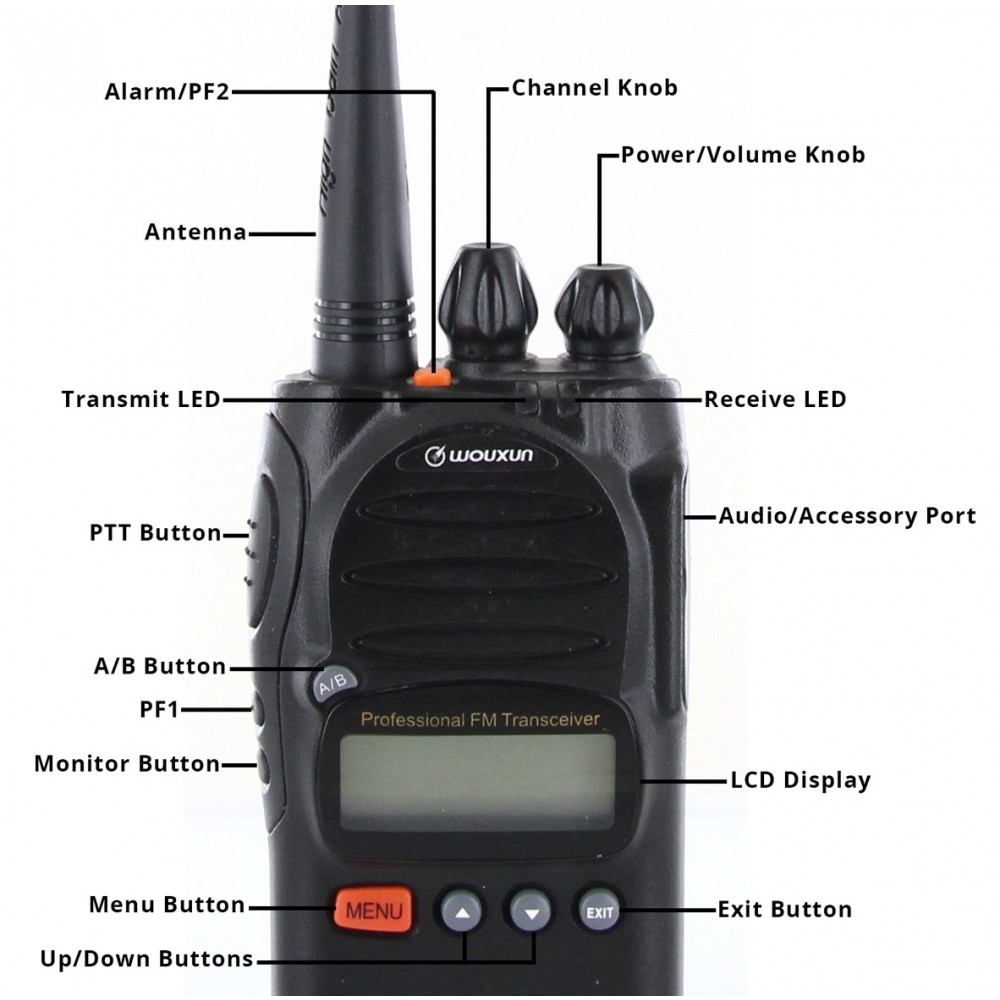

The audio accessory/programming cable jack is located on the right side of the radio on both models. The location of everything else is also the same, including the LCD display with a selectable three color backlight, channel knob, on/off volume knob and alarm button. The PTT (Push-To-Talk), PF1 and Monitor buttons are on the left side of the radio housing. Overall, all of the controls are where you would expect them to be.
The controls and their primary functions are listed in the chart below:
Control | Operation |
---|---|
Alarm/PF2 | Activates alarm |
Channel Knob | Changes channels and menu items |
On/Off Volume Knob | Turns radio on and off - sets volume level |
PTT | Push-To-Talk Transmit button |
PF1 Button | Programmable button |
Monitor Button | Opens squelch to monitor weak signals |
A/B | Channel Scan - Hold 2 seconds |
MENU | Enter program menu|choose/set menu option |
UP ARROW | Select previous channel|Select menu option |
DOWN ARROW | Select next channel|Select menu option |
EXIT | Exit program menu/cancel |
As a portable handheld radio alone, the Wouxun KG-805G Series is a great value. As a GMRS or MURS radio, it can provide more power and versatility to the user experience at a more reasonable price.
Trying to program the KG805g from the Wouxun software. The repeater listings generally give either a CTC tone or a D tone. In all the listings I have seen, the D tones are given as *DPL* codes.
However, the Wouxun software gives two D tone options in the dropdown menu, either a DN or a DI tone. So should a DPL code be entered as a DN or a DI tone?
I wish radio manufacturers would settle on one standard.
I'm a noob at GMRS (and HAM for that matter) and I've got a KG-805G and the KG-805(A) software and have been able to successfully program my radio. The question I have is can I change the repeater channel? I see it is a drop down with fixed frequencies. I have a repeater that is several miles away that I'd like to use. It says it is open, but the Output is 147.360+, PL 141.3 and Call Sign of W9QR but I can't seem to program that into one of the repeater channels. Is this because that is a HAM band and not a GMRS band?
That is correct. The KG-805G operates on GMRS frequencies in the UHF band. The amateur repeater in question operates on a ham frequency in the VHF band.
The local repeater uses tone DPL 432. Does that translate to either CTCSS or DCS?
Thanks.
It is a Digital Private Line code, aka DCS.
Will the Wouxun KG-805G scan for transmit & receive tones?
There is a local area repeater that I would like to use, but I don't know the transmit & receive tones used on that repeater.
I have contacted the repeater owner several times, but I don't get any response to my emails to the repeater owner.
Thanks, John
The KG-805G does not have tone scan, however the KG-905G does. As for contacting the repeater owner for access, it's hit and miss. If it is a private repeater, the owner will likely not be compelled to respond. The most common procedure is to look the repeater up in the database at mygmrs,com. If it's listed, there will usually be a notation as to whether the repeater is private or publicly accessible. If it is allowed for public use, contacting the repeater owner may not even be necessary. If there is not PL tone listed for the repeater, no tone may be needed for access. If it is listed as private, and the owner does not respond to your query, it is usually a clear indication that heshe does not want to grant you access to it. In that case, it is best to respect that and move on.
The KG-805 v2.01 CPS programming software does not work for the KG-805M radios. User can not set the TX frequency on any channel. The code forces GMRS frequencies into the field which will obviously not work.
I represent Walpole (MA) EMA, and we will probably have to send back our four 805M radios unless this is addressed.
Please advise.
Hi Jeff, the KG-805 programming software supports both the KG-805G and KG-805M. If you click on the TX field, it should change to a drop-down to choose the frequency from a list. The GMRS frequencies will be listed at the top and the MURS frequencies are located at the bottom of the list. This allows you to scroll down the list and click on the MURS frequency you want to enter in the TX field. There is one scenario in which the issue you describe may occur. We have two versions of the KG-805 series software. The KG-805G and KG-805M use the KG-805(A) version. The KG-805F (FRS radio) uses the KG-805F(1) version. If the KG-805M MURS radio is loaded it into the KG-805(F) programming software, this issue will occur. To check this, open the programming software and click Help on the menu bar. If it says About KG-805(F), you have the FRS version, which will not work for the KG-805M. You will need to download the correct version from the Downloads tab on the Wouxun KG-805M product page. If it says About KG-805(A), you have the correct software for the KG-805M. If this is the case, give us a call at 1-800-584-1445 from 8 AM to 6 PM weekdays so we can assist in troubleshooting the issue.
