Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)

Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)

SKU: BR-200-1-MR
Browning Low Loss RG-58 coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

In stock

From $2.28

To $38.26

Customize Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)

Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)   + $0.19
  • Buy 100 for $0.15 each and save 21%
  • Buy 200 for $0.11 each and save 42%
  • Buy 300 for $0.09 each and save 53%
  • Buy 500 for $0.07 each and save 63%

Bundle Details

Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)

Final product price

Summary
Jump to: Description Reviews

Description / Browning BR-200 .195" Low Loss RF Coax Cable - Custom Length (per foot)

Build your own cable!

Browning Low Loss BR-200 coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

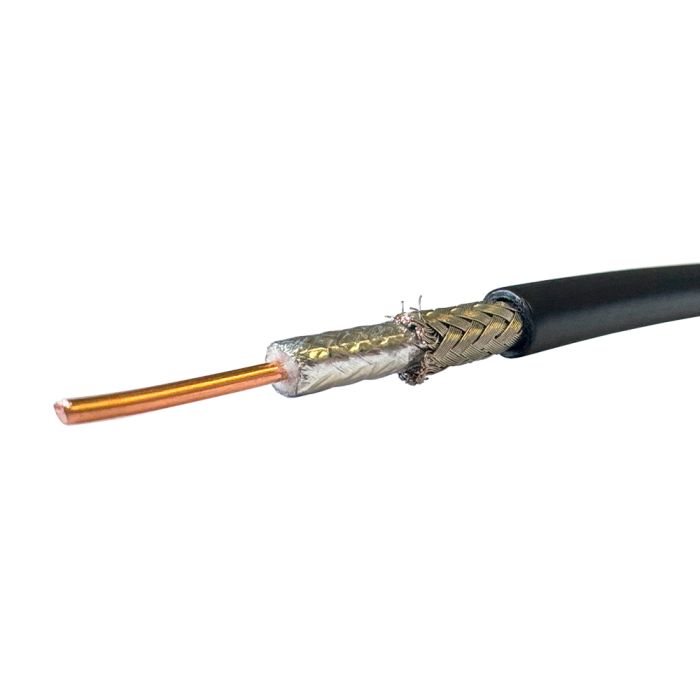

Browning Low Loss BR-200 Cable
  • Braided 0.195 inch (4.95mm) diameter coaxial cable
  • Low loss RG-58 type
  • High velocity gas-injected foam polyethylene dielectric - 83%
  • Double shield coverage—95% tinned copper braid plus bonded aluminum tape
  • Solid bare 1.12mm copper center conductor
  • Black UV resistant polyethylene jacket
  • 50 ohms
  • Use standard RG-58 crimp connectors

Electrical Specifications
  • Maximum frequency - 16.2 GHz
  • Velocity of propagation - 83%
  • DC breakdown - 1000 Volts
  • Peak power rating - 2.5kW
  • DC resistance, inner conductor (ohms) -5.36/1000'
  • DC resistance, outer conductor (ohms) - 4.90/1000'
  • Jacket spark-volts RMS - 3,000
  • Impedence - 50 Ohms
  • Capacitance - 25.55 pF/ft.
  • Inductance - 0.061 uH/ft.
  • Shielding effectiveness - >90 dB
  • Phase Stability - < 10 ppm/C

BR-200 Attenuation and Average Power Rating

Frequency MHz Attenuation
db/100ft.		 Attenuation
dB/100m		 Avg. Power KW
30 1.8 5.8 1.20
50 2.3 7.5 0.79
150 4.0 13.1 0.45
220 4.8 15.9 0.37
450 7.0 22.8 0.26
900 9.9 32.6 0.18
1500 12.9 42.4 0.14
1800 14.2 46.6 0.13
2000 15.0 49.3 0.12
2500 16.9 55.4 0.10

More Information

Coax Size .195" / RG-58 / 5.4mm
