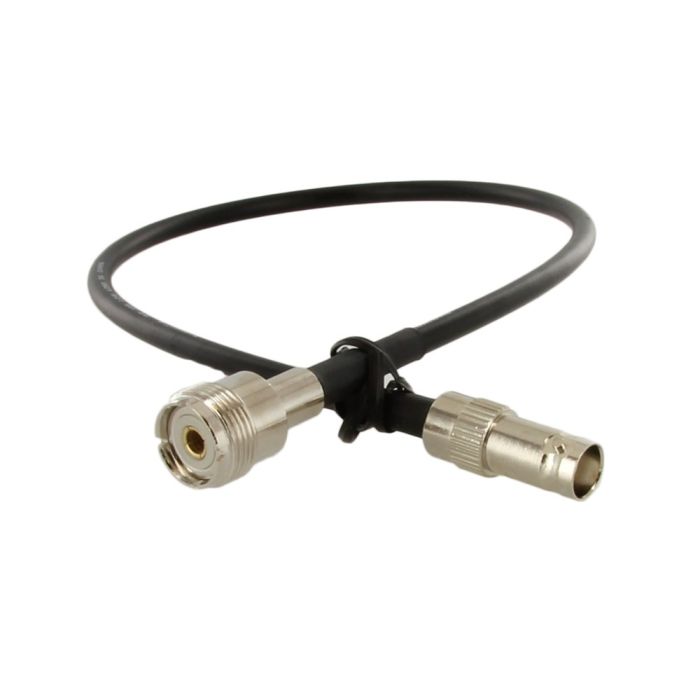

BNC Female to UHF Female (SO239) 18 inch Pigtail Cable (RG58)
BNC Female to UHF Female (SO239) 18 inch Pigtail Cable (RG58)
SKU: PT18-BNCF-UHFF
The BTWR Essentials Low Loss 18 inch RG-58 coaxial pigtail cable is ideal for short "patch" connections from your radio to your antenna feed line. It's perfect for connecting your portable, handheld radio to a mobile antenna in your vehicle. Short cables like these are often preferable to a standard adapter because they put less strain on the antenna connector of your HT.
In Stock
$9.99
Description / BNC Female to UHF Female (SO239) 18 inch Pigtail Cable (RG58)
The BTWR Essentials Low Loss 18 inch RG-58 coaxial pigtail cable is ideal for short "patch" connections from your radio to your antenna feed line. It's perfect for connecting your portable, handheld radio to a mobile antenna in your vehicle. Short cables like these are often preferable to a standard adapter because they put less strain on the antenna connector of your HT.
Electrical Specifications
- Braided 0.195 inch diameter coaxial cable
- Low loss RG-58 type
- Length: 18 inches
- BNC Female to UHF Female (SO239)connectors
- High velocity gas-injected foam dielectric - 76%
- 100% shield coverage—95% tinned copper braid plus bonded aluminum tape
- Solid bare copper center conductor
Electrical Specifications
- Maximum frequency - 16.2 GHz
- Velocity of propagation - 76%
- DC breakdown - 1000 Volts
- Peak power rating - 2.5kW
- Impedence - 50 Ohms
- Shielding effectiveness - >90 dB
- Phase Stability - < 10 ppm/C
More Information
| Quantity | 1 Pack |
|---|
