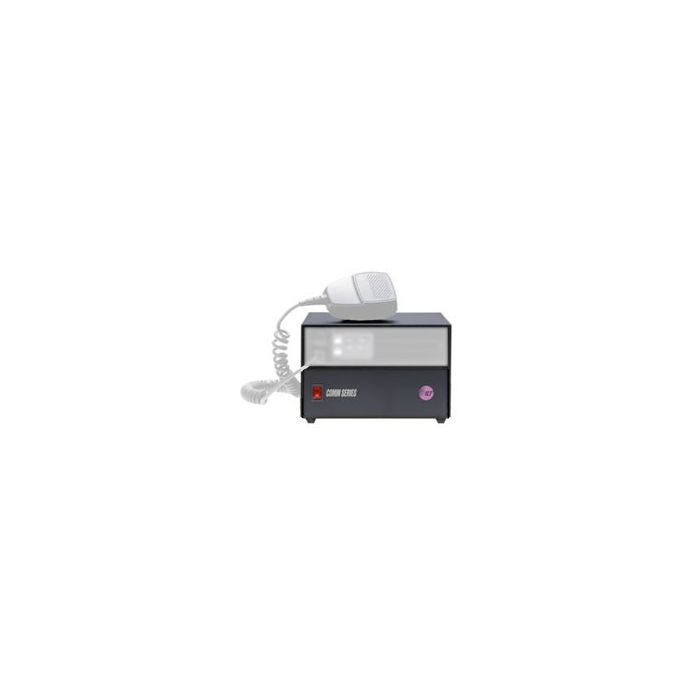

ICT Icom Mobile Radio Base Station Kit (IC04)

100 1 100 0

Quick Overview

The ICT IAPS04 (formerly CS120-20AG/ICO4) combines the ICT12012-20AG switching power supply with BASE-ICO4 base station cover to create a complete, ready-to-use base station assembly designed and customized to house and convert select Icom mobile radios into a fully functional base station. The ICT power supply incorporates extra filtering, providing a virtually noise-free environment and trouble-free operation. Works with Icom F121S, F221S, F5011, F5021, F5121D, F5220D, F6011, F6021, F6121D and F6220D mobile radios.
Free Shipping

Availability: In Stock

$240.00

Details

The ICT IAPS04 (formerly CS120-20AG/ICO4) combines the ICT12012-20AG switching power supply with BASE-ICO4 base station cover to create a complete, ready-to-use base station assembly designed and customized to house and convert select Icom mobile radios into a fully functional base station. The ICT power supply incorporates extra filtering, providing a virtually noise-free environment and trouble-free operation.
  • ICT12012-20AG switching power supply
  • BASE-ICO4 base station cover
  • Model IAPS04 (formerly CS120-20AG/IC04)
  • Attractive finish
  • Lightweight
  • Sleek profile
  • Easy to install
  • Input voltage: 90 - 130 VAC
  • Input Frequency Range: 50 - 60 Hz
  • Output voltage: 13.8 VDC +/- 150 mV
  • Output current: 20.0 Amps(peak) 17.0 Amps(continuous)
  • Current Limiting: 20.5 Amps
  • Line Regulation: 0.20%
  • Load Regulation: 0.85%
  • Output Ripple (Max): 25 mV RMS
  • Efficiency (Min): 85%
  • Fuse: 5A
  • Operating Temperature: -50°F to 125°F
  • Dimensions (L x W x H): 8.51" x 6.45" x 4.2" / 21.61cm x 16.38cm x 10.66cm
  • Weight: approx. 2.22kg. (4.9 lbs.)
  • Works with Icom F121S, F221S, F5011, F5021, F5121D, F5220D, F6011, F6021, F6121D and F6220D mobile radios.
  • One year warranty

Additional Information

Warranty 1 Year
