M&P Broad Pro 50C Competition .400" Coax Cable - Custom Length (per foot)

M&P Broad Pro 50C Competition .400" Coax Cable - Custom Length (per foot)

SKU: MP-BP50C-MR

Discontinued

Jump to: Description Reviews

Description / M&P Broad Pro 50C Competition .400" Coax Cable - Custom Length (per foot)

Build your own cable!

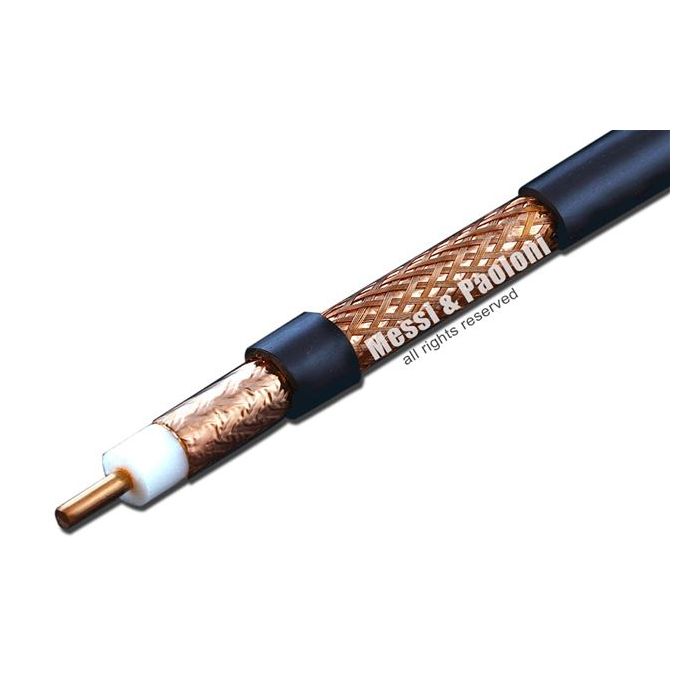

Messi & Paoloni Broad Pro 50C Competition coaxial cable is made for outdoor use. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Why choose Messi & Paoloni Broad Pro 50C Competition cable?

10.3mm (.400") cable
Completely made of copper
Outstanding attenuations at every frequency (2/3dB less at 2400Mhz than a competitor cable)
Solid core conductor with larger diameter (2.76mm)
Perfect for outdoor use and weatherproof
Excellent performance with limited signal loss even at higher frequencies and long distances
Reactive braid of 144 wires
UV-resistant black jacket limits smoke and no halogen when exposed to flames.

Note: For very tight bends and rotor antennas, choose ULTRAFLEX 10 or HYPERFLEX 10.

Broad Pro 50C Competition Attenuation (68°F / 20°C)

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m
1.8 MHz	0.2	0.6
3.5 MHz	0.2	0.8
7 MHz	0.3	1.0
10 MHz	0.3	1.2
14 MHz	0.4	1.3
21 MHz	0.5	1.7
28 MHz	0.5	1.9
50 MHz	0.7	2.5
100 MHz	1.1	3.6
144 MHz	1.3	4.4
200 MHz	1.5	5.2
400 MHz	2.2	7.5
430 MHz	2.3	7.8
800 MHz	3.3	10.9
1000 MHz	3.7	12.3
1296 MHz	4.3	14.1
2400 MHz	6.0	19.8
3000 MHz	6.8	22.5
4000 MHz	8.1	26.8
5000 MHz	9.3	30.5
6000 MHz	10.3	34.1
7000 MHz	11.4	37.6
8000 MHz	12.5	41.0
10000 MHz	14.2	46.8
12000 MHz	15.1	52.2
