Messi & Paoloni Hyperflex 10 Premium .400" Coax Cable - Custom Length (per foot)
Messi & Paoloni Hyperflex 10 Premium .400" Coax Cable - Custom Length (per foot)
SKU: MP-HYF10-MR

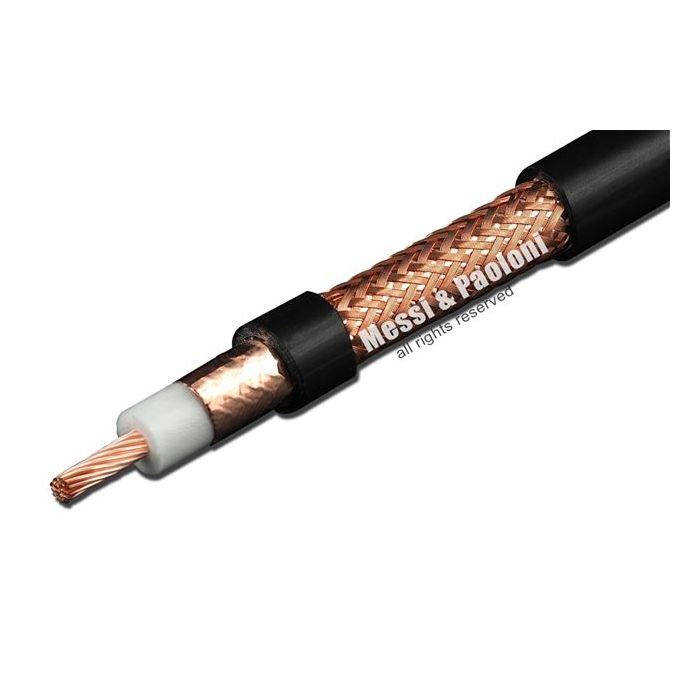

Messi & Paoloni Hyperflex 10 premium coaxial cable has the best attenuation for a stranded core 10.3mm coaxial cable. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Out of stock
From $1.48
To $53.46
Description / Messi & Paoloni Hyperflex 10 Premium .400" Coax Cable - Custom Length (per foot)
Build your own cable!
Messi & Paoloni Hyperflex 10 premium coaxial cable has the best attenuation for a stranded core 10.3mm coaxial cable. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.
Why choose Messi & Paoloni Hyperflex 10 cable?
- 10.3mm (.400") cable
- The best attenuation for a stranded core 10.3mm coaxial cable
- The most flexible 10.3mm cable, perfect for tight bendings and rotor antennas
- Best velocity ratio in the coax range - 87%!
- Excellent performance with limited signal loss, even at higher frequencies and long distances
- The best cable for Wi-Fi signal extension, Router, 2G-5G, Hotspot, LoRaWAN protocol, Gateway IoT
Hyperflex 10 Attenuation (68°F / 20°C)
| Frequency MHz | Attenuation db/100ft. |
Attenuation dB/100m |
|---|---|---|
| 1.8 MHz | 0.2 | 0.8 |
| 3.5 MHz | 0.3 | 1.0 |
| 7 MHz | 0.3 | 1.1 |
| 10 MHz | 0.4 | 1.3 |
| 14 MHz | 0.4 | 1.5 |
| 21 MHz | 0.5 | 1.8 |
| 28 MHz | 0.6 | 2.0 |
| 50 MHz | 0.8 | 2.7 |
| 100 MHz | 1.1 | 3.9 |
| 144 MHz | 1.4 | 4.7 |
| 200 MHz | 1.7 | 5.6 |
| 400 MHz | 2.5 | 8.3 |
| 430 MHz | 2.6 | 8.6 |
| 800 MHz | 3.6 | 11.9 |
| 1000 MHz | 4.1 | 13.4 |
| 1296 MHz | 4.7 | 15.4 |
| 2400 MHz | 6.6 | 21.8 |
| 3000 MHz | 7.5 | 24.6 |
| 4000 MHz | 8.8 | 29.1 |
| 5000 MHz | 10.0 | 33.1 |
| 6000 MHz | 11.2 | 36.9 |
| 7000 MHz | 12.4 | 40.7 |
| 8000 MHz | 13.4 | 44.2 |
| 9000 MHz | 14.4 | 47.5 |
| 10000 MHz | 15.4 | 50.7 |
Videos
More Information
| Warranty | 2 Years |
|---|---|
| Coax Size | .400" / 10mm |
Downloads
Loading...
Customer Reviews
Filter reviews by:
life changing
Upon purchasing this product my life became dramatically better.
Needed to by good cable for my HAM radio was not sure what to get
I was helped by Shane and he was awesome and help me greatly, he went out of his way to email info I needed and was very courteous.us
htperflex 10
Very nice cable. very pleased and will be buying more. Best cable there is for the price.
Absolutely fantaatic
Set up my GMRS base station at the house and ran 50' of some regular RG8X with PL-259's attached with another regular N male to So-239 for a BR-6140 antenna. Once I got all together I had an SWR of 1.97/2.0. Order the Hyperflex 10 with N male and PL-259 attached. Received the order quickly. Once installed nwas able to get a 1.02/1.04 SWR. I can't say enough about this coax for a base station. Although the size of LMR400 it has some great flexibility to where I could get it through the walls. Five stars!!!
Nice Coax
Very nice coax! Pretty flexible for something that subs for LMR-400. Ordered a custom length of 65 feet. Most vendors adhere to the "baker's dozen" concept and add a little extra to be sure. As-received, my 65 ft was 64.5 ft (stretched out and measured with a 100 ft tape measure).
Best coax ever!
I am replacing the coax to my Sommer xp707
log "type" beam and a diamond X200 antenna.
I now have 2 100 foot rolls of the Hyper flex 10 coax.
It is very easy to work with and I'm using the
Associated Messi & Paoloni PL259 connectors.
I'll never buy other coax and connectors now that I have found this product line.
log "type" beam and a diamond X200 antenna.
I now have 2 100 foot rolls of the Hyper flex 10 coax.
It is very easy to work with and I'm using the
Associated Messi & Paoloni PL259 connectors.
I'll never buy other coax and connectors now that I have found this product line.
Great cable
If your looking for good coax cable this is it. I run 75' of this cable, it's very flexible and easy to work with. I attached the SWR meter to the handheld radio and cable and got a 1.1 reading with less than a half watt loss.
Great cable
This coax is the best I have used, very flexible and great specs.
Working great.
No issues working very well. Note to others; the center conductor will not fit regular lmr400 n-type connectors because the stranded center conductor is slightly larger in diameter than solid center conductor, however I was able to drill out the center conductor on an lmr400 n type connector to fit this cables stranded center in it! This worked great and took very little effort.
