Messi & Paoloni Ultraflex 10 Premium .400" Coax Cable - Custom Length (per foot)

0 Review(s)

Quick Overview

Availability: In stock

From: $1.46

To: $53.44

Price as configured: $0.00

Email to a Friend

Cable Length (Enter number of feet needed)*: Messi & Paoloni Ultraflex 10 Premium .400" Coax Cable - Custom Length (per foot) +$1.46

Qty:
Connector 1*: Qty:
Connector 2*: Qty:
Choose Assembly Option*: Qty:

Price as configured: $0.00

Qty:

Details

Build your own cable!

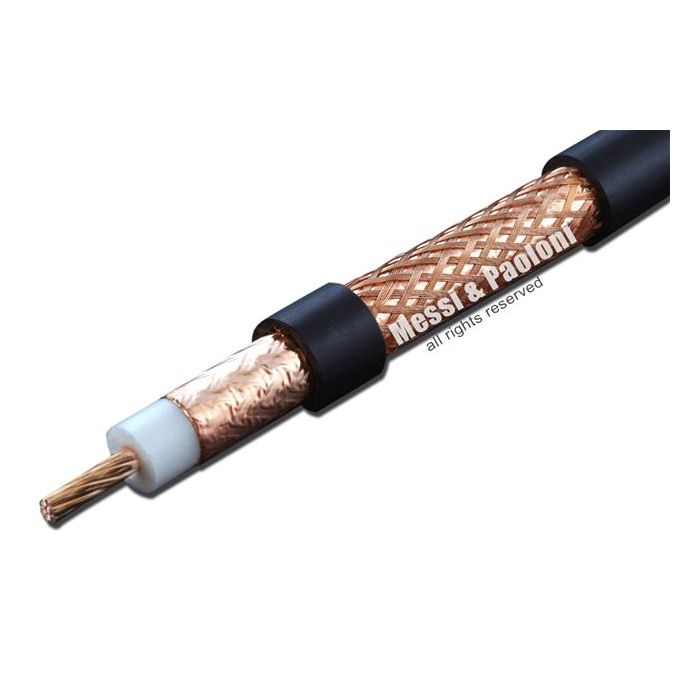

Messi & Paoloni Ultraflex 10 premium coaxial cable is made with an additional foil that protects it from electromagnetic interference. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Why choose Messi & Paoloni Ultraflex 10 cable?

10.3mm (.400") cable
Outclasses RG213 with an additional foil that protects it from electromagnetic interference
Made of copper with a screening efficiency >105dB
Dramatic reduction of background noise
Perfect for amateur radio use, CB radio, jumpers, and more

Note: For direct burial, choose EXTRAFLEX BURY 10.

Ultraflex 10 Attenuation (68°F / 20°C)

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m
1.8 MHz	0.2	0.8
3.5 MHz	0.3	1.0
7 MHz	0.3	1.2
10 MHz	0.4	1.3
14 MHz	0.4	1.5
21 MHz	0.5	1.8
28 MHz	0.6	2.0
50 MHz	0.8	2.7
100 MHz	1.1	3.9
144 MHz	1.4	4.7
200 MHz	1.7	5.7
400 MHz	2.5	8.3
430 MHz	2.6	8.6
800 MHz	3.7	12.1
1000 MHz	4.2	13.8
1296 MHz	5.0	16.4
2400 MHz	7.2	23.7
3000 MHz	8.3	27.3
4000 MHz	10.0	32.9
5000 MHz	11.8	38.9
6000 MHz	13.5	44.5
7000 MHz	15.3	50.2
8000 MHz	17.0	55.8
