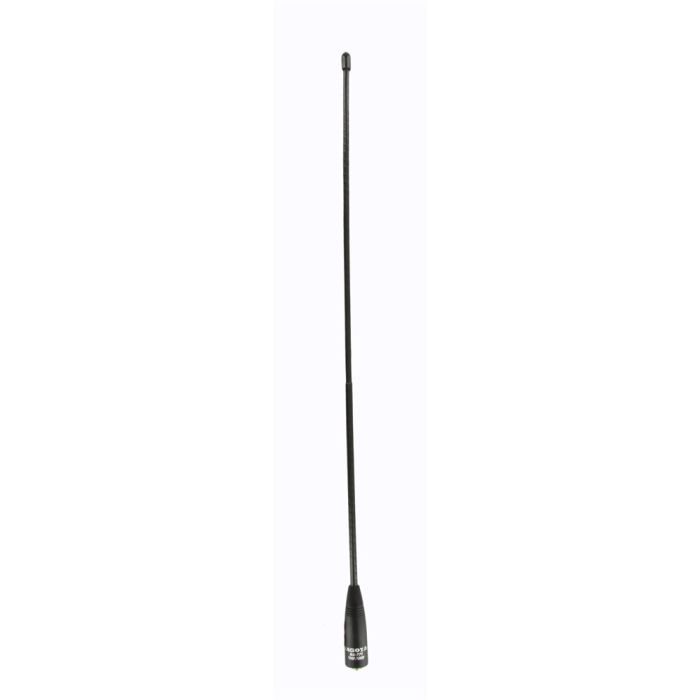

Nagoya NA-771 2m/70cm Dual Band Antenna (SMA Female/Male/BNC)
Nagoya NA-771 2m/70cm Dual Band Antenna (SMA Female/Male/BNC)
SKU: NA-771-SMAJ-MR
The Nagoya NA-771 is a dual band 2m/70cm antenna for your Baofeng or Wouxun HT two way radio. Choose from three connector types: SMA Female (Model NA-771-SMAJ), SMA Male (Model NA-771-SMAP) or BNC (Model NA-771-BNC). The NA-771 is a popular choice for use with dual band amateur handheld two way radios such as the Baofeng UV-5R.
Discontinued
Description / Nagoya NA-771 2m/70cm Dual Band Antenna (SMA Female/Male/BNC)
The Nagoya NA-771 is a dual band 2m/70cm antenna for your Baofeng or Wouxun HT two way radio. Choose from three connector types: SMA Female (Model NA-771-SMAJ), SMA Male (Model NA-771-SMAP) or BNC (Model NA-771-BNC). The NA-771 is a popular choice for use with dual band amateur handheld two way radios such as the Baofeng UV-5R.
- Genuine Nagoya antenna
- 144/430 MHz
- 2.15 dBi gain
- 39 cm height
- 53g weight
- Max power 5W
- Impedence 50 ohms
- V.S.W.R. less than 1.5:1
- Choose from three connector types:
- SMA Female connector - Model NA-771-SMAJ
- SMA Male connector - Model NA-771-SMAP
- BNC connector - Model NA-771-BNC
- Perfect for dual band amateur HTs (such as the Baofeng UV-5R)
Verified Authorized Nagoya Dealer
Official List of Nagoya Authorized Dealers and Distributors Worldwide
More Information
| Warranty | 6 Months |
|---|---|
| Service / Frequency | Amateur, UHF, VHF |
| Number of Bands | Dual Band |
Downloads
Loading...
Customer Reviews
Filter reviews by:
Over rated.
Doesn't perform any better than a UV-B5 Antenna on a UV-5R.
Definitely better than stock antenna
I use it on Baofeng UV-5R+ & I can access a repeater full quieting that I could not access with the stock antenna.
Awesome Antenna
This antenna improves the overall performance of any dualband 2m/10cm portable HAM HT or police scanner guaranteed. I am very happy with the product as it is an original Japanese quality product built to quality Japanese standards.
Works as advertised
I put this antenna on my Baofeng UV-5RA before I was licensed to transmit, so I can't compare it with the rubber ducky that came with the radio except to say that RX seemed better with the Nagoya. On that radio I can reach a repeater some 60 miles away. That speaks for the radio and the antenna. There seem to be many knock-oofs out there; I think this is genuine.
Save your money
I've used this antenna on a Wouxun UVD1P and a Baofeng UV-82. I've tried it in my basement, I've tried it outdoors working both near and distant repeaters, and I noticed absolutely no improvement over the stock antennas on these two radios. I spent several hours working with this antenna, switching back and forth with the stock antennas. I really wanted to like it, but there is just no reason to buy this antenna if you have either of the two radios I have.
Beats the heck out of the stock Alinco rubber-duck antenna!
Exactly what I hoped for and expected. I would buy again if I had to replace it.
Definitely worth the money
This antenna greatly improved the reception of my radio. It not only picks up better, but transmits better too!
i would by this product again
Excellent customer service. Item is a genuine Nagoya NA771 for my beofeng uv-5r. Came as ordered on time with spacer.
I REALLY LIKE THE QUALITY OF YOUR PRODUCTS
I AM REALLY PLEASED BY THE QUALITY OF YOUR PRODUCTS. I WAS AMAZED AT THE FAST DELIVERY OF THE ORDER I PLACED FROM YOU. I WAS EXPECTING THE USUAL 8 TO 10 DAYS DELIVERY FOR MY ORDER BUT IT ARRIVED IN TWO DAYS.......THANK YOU YOU WILL BE MY "GO TO GUYS" FOR FUTURE PURCHASES
Buy With Confidence
I wanted to make sure I was getting the real deal and not a fake Nagoya NA-771 antenna so I went with Buy-Two-Way-Radios and was happy I did. I got the right product and the shipping was fast.
