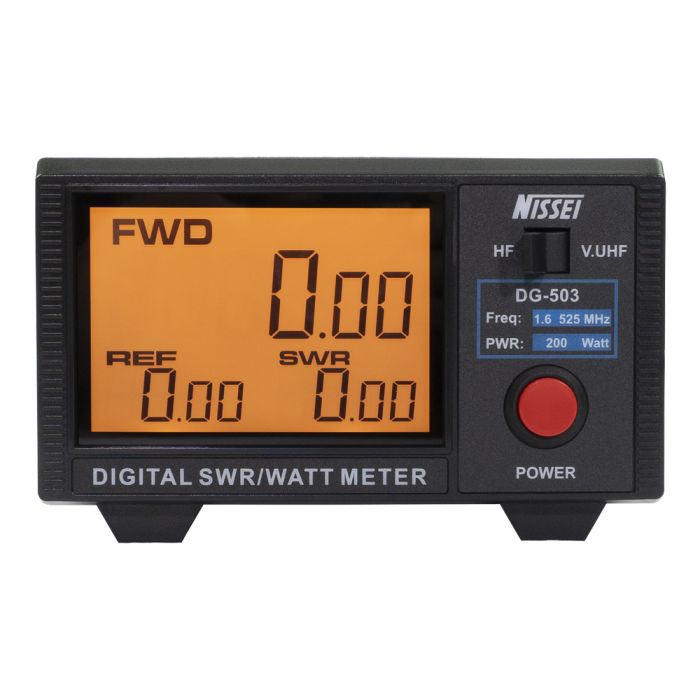

Nissei DG-503 Digital SWR and Power Meter for Analog and Digital Radios (1.6-60 MHz / 125-525 MHz, 200 Watts)
Nissei DG-503 Digital SWR and Power Meter for Analog and Digital Radios (1.6-60 MHz / 125-525 MHz, 200 Watts)
SKU: DG-503
The Nissei DG-503 is a digital power and S.W.R. meter for analog and digital two way radios with a maximum measurable power range of up to 200W. It has UHF Female (SO-239) in and out connectors.
Free Shipping
In Stock
$149.99
Description / Nissei DG-503 Digital SWR and Power Meter for Analog and Digital Radios (1.6-60 MHz / 125-525 MHz, 200 Watts)
This model measures NXDN (FDMA) digital. For DMR (TDMA) choose the DG-503MAX.
The Nissei DG-503 is a digital power and S.W.R. meter for analog and digital two way radios with a maximum measurable power range of up to 200W. It has UHF Female (SO-239) in and out connectors.
The Nissei DG-503 is a digital power and S.W.R. meter for analog and digital two way radios with a maximum measurable power range of up to 200W. It has UHF Female (SO-239) in and out connectors.
- highly accurate for measuring Forward Power, Reflected Power, and the VSWR of Analog and Digital transceivers
- Large LCD (3.5″) backlit display for easy of reading
- Measurement (Analog mode): CW, FM, FDMA
- Calibration point: 28 / 145 / 435 MHz
- Maximum measurable power range up to 200W
- Minimum Power for SWR 1W
- Checks your antenna SWR
- Checks your radio RF power wattage
- Easy to install
- DC Power source: 12V DC Wire
- Convenient control layout for easy operation.
- Frequency range: 1.6-60 MHz / 125-525 MHz
- Insertion Loss: Less than 0.1 dB
- Testing functions: Fwd/Rev Power, SWR ratio
- Accuracy: (AVG) + / - 5%
- Impedance: 50 Ohm
- Interface (in and out): UHF female (SO-239)
- Includes operation manual and DC 12V wire
- Model number: DG-503
- Dimensions: 5.51 in.(W) x 3.30 in. (H) x 4.80 in. (D) / 140 x 84 x 122 mm
- Net Weight: 1.65 lbs. / 750g
More Information
| Warranty | 90 Days |
|---|
Downloads
Loading...
Customer Reviews
Filter reviews by:
Needs better instructions
Does well 2M, 70cm, HF needs better instructions. This model does not measure on SSB, set your radio to FM and it works as expected. Instructions vague on this. Otherwise it is good.
Customer Service
Had several questions and emailed customer service. Email was replied to next business day and questions answered by Anthony.. Great customer service! Thanks!
Needs to be calibrated
Great little meter for what I needed. Like every digital swr meter I’ve ever owned they are never exact out of the box unlike most cross needles or Byrd meters. There are two potentiometers that can be adjusted inside to do this. Once calibrated its on the money and does what it was designed to do.
It works
It's not the most accurate out of the box, but it works.
ACCURACY
OUT THE BOX SUCKS, FOR 149.00 BUCKS IT SHOULD BE CALIBRATED FOR ACCURACY.
ITS ABOUT 10 WATTS OFF OUT HE BOX.
SHOULD SELL FOR NO MORE THEN 79.00 IF THE USER NEEDS EQUIPMENT TO CALIBRATE.
JUST MY OPINION
ITS ABOUT 10 WATTS OFF OUT HE BOX.
SHOULD SELL FOR NO MORE THEN 79.00 IF THE USER NEEDS EQUIPMENT TO CALIBRATE.
JUST MY OPINION
