Nissei RS-50 Digital SWR and Power Meter (125-525 MHz, 120 Watts)
Nissei RS-50 Digital SWR and Power Meter (125-525 MHz, 120 Watts)
SKU: RS-50

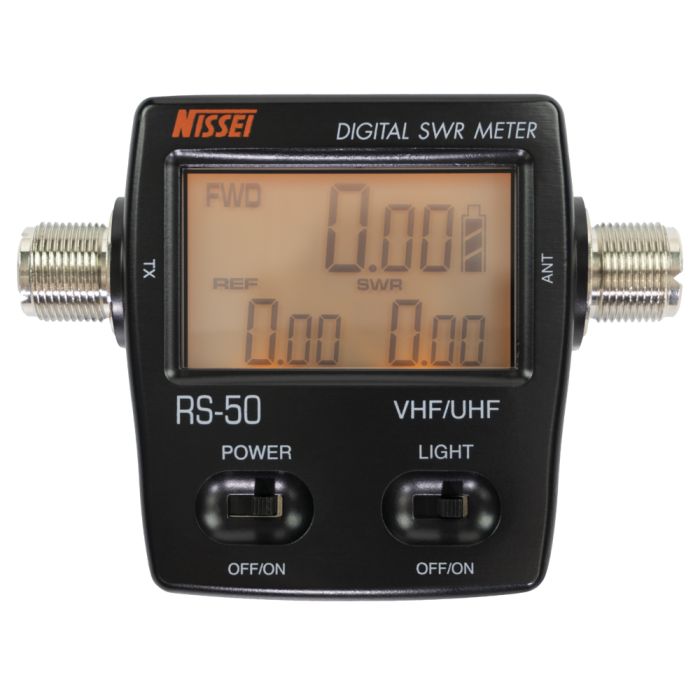

The Nissei RS-50 is a digital power and S.W.R. meter for two way radios with a maximum measurable power range of up to 120W. It has UHF Female (SO-239) in and out connectors. This compact unit fits in the palm of your hand, so you can carry it with you everywhere you go.
In Stock
$89.99
Description / Nissei RS-50 Digital SWR and Power Meter (125-525 MHz, 120 Watts)
The Nissei RS-50 is a digital power and S.W.R. meter for two way radios with a maximum measurable power range of up to 120W. It has UHF Female (SO-239) in and out connectors. This compact unit fits in the palm of your hand, so you can carry it with you everywhere you go.
- Can read out directly without any calibration
- Low insertion loss structure allows it to be connected permanently.
- Maximum measurable power range up to 120W
- Checks your antenna SWR
- Checks your radio RF power wattage
- Easy to install
- Forward / Reversed / VSWR ration in one push button.
- LED backlit display for ease of reading.
- DC Power source :internal “AAA” batteries / external USB port
- Applicable rechargeable battery.
- Micro USB – DC 5V output (does not include adapter).
- Convenient control layout for ease operation.
- Frequency range: 125-525MHz
- Insertion Loss: < 0.3 dB or lower
- Testing functions: Fwd/Rev Power, SWR
- Accuracy: (AVG) + / - 5%
- Impedance: 50 Ohm
- Interface (in and out): UHF female (SO-239)
- Model number: RS-50
- Dimensions: 2.75 in.(W) x 0.98 in. (H) x 1.18 in. (D) / 70 x 78 x 30 mm
- Net Weight: 7.76 oz. / 220g (without batteries)
Videos
More Information
| Warranty | 90 Days |
|---|
Downloads
Loading...
Customer Reviews
Filter reviews by:
Missing much needed connectors
I really wanted to like this thing, went looking for connectors to adapt my SMA Male to SO-238 male and it didn't come with anything and nothing was suggested when I placed my order. Also, I charged it up over night, unplugged it for a day, went to use it, and it was dead already. Going to see if it was just something I did wrong or not, tonight....
No cables included
With ONLY the two female connection knobs on the sides and nothing else included, not even rechargeable batteries to use it initially it's not worth it's exuberant price, considering other units with much needed cables included are less than ½ it's price. Nothing anywhere said it required batteries, (can use rechargeable but, it won't recharge them,) that weren't included. I figured it had built-in rechargeable li-lons for the price.
The great thing is, it doesn't require nor have a way to set it's zeroing. It does that all by itself. Seems to be accurate, I have nothing to compare it to so I can't confirm this. Did what I needed.
The great thing is, it doesn't require nor have a way to set it's zeroing. It does that all by itself. Seems to be accurate, I have nothing to compare it to so I can't confirm this. Did what I needed.
Nissei RS-50 Dig.l SWR & Pwr Mtr
This is my 3rd SWR Meter - the other two were sent-back to Amazon. This one works, and works good!
One thing, however, personally after trying them I'd, forget the batteries. The Meter eats in a hurry! Use the USB cable and you'll not have a problem with batteries.
One thing, however, personally after trying them I'd, forget the batteries. The Meter eats in a hurry! Use the USB cable and you'll not have a problem with batteries.
Appears to be well built
This is a nice swr and power meter. Hey guys, it would be great to include a couple of quality short pieces of
Coax for this unit. It would be well worth a few bucks ! Also, the screen distorts if its only rotated a small bit. Kind of annoying but not a deal breaker.Tks
Coax for this unit. It would be well worth a few bucks ! Also, the screen distorts if its only rotated a small bit. Kind of annoying but not a deal breaker.Tks
