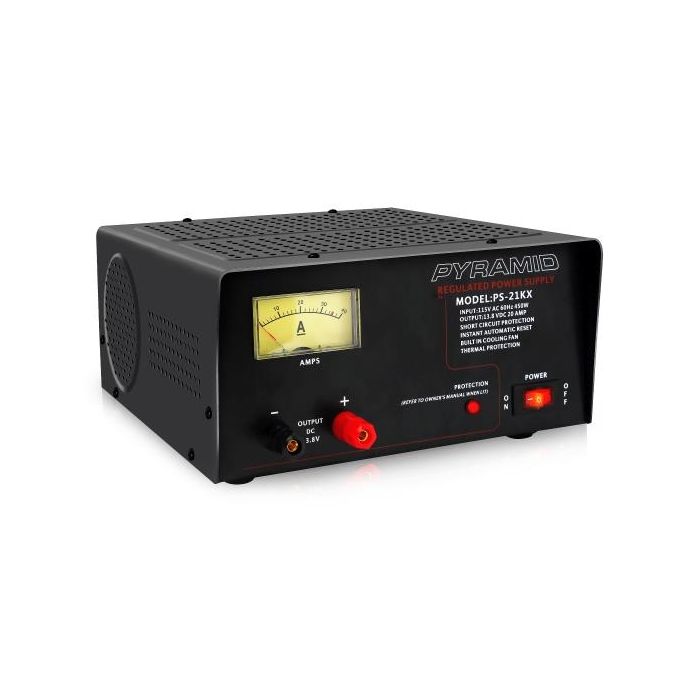

Pyramid PS21KX Bench Power Supply AC-to-DC Power Converter with Amperage Gauge Display (18 Amp)
Pyramid PS21KX Bench Power Supply AC-to-DC Power Converter with Amperage Gauge Display (18 Amp)
SKU: PS21KX
Pyramid PS21KX is a 18 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage metered display. It's great for converting mobile two way radios to base stations.
Discontinued
Description / Pyramid PS21KX Bench Power Supply AC-to-DC Power Converter with Amperage Gauge Display (18 Amp)
Pyramid PS21KX is a 18 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage metered display. It's great for converting mobile two way radios to base stations.
Features:
Technical Specs:
Features:
- Genuine Pyramid linear/regulated power supply
- AC-to-DC Power Conversion (12V DC)
- Provides constant source of DC voltage
- Simple electronic plug-in operation
- Hassle-free screw terminal connectors
- Eliminates the need of battery or external power source
- Analogue gauge amperage metered display
- Fuse protected with auto-reset
- Electronic overload & short circuit protection
- Used for component & device equipment testing, operation & performance
- Rugged & durable housing construction, cabinet heatsink
- LED Indicator Light
- Built-in cooling fan
- Power ON / OFF switch
- Pyramid Compact Hobby Power Supplies are safe for tabletop placement
- Part number: PS21KX
- Works with mobile two way radios
Technical Specs:
- Amperage: 18.0 AMP (Constant), 20.0 AMP (Surge)
- Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)
- Power Output: 13.8V DC
- Power Input: 115V AC, 60Hz (450 Watt)
- Dimensions (L x W x H): 11.8'' x 9.1'' x 4.9'' -inches
- Weight: 17.5 lbs.
More Information
| Type | Linear |
|---|---|
| Features | Amp Meter, Fan, Overload Protection |
| Maximum Amps | 18 |
| Mount Style | Desktop |
| Warranty | 1 Year |
Downloads
Loading...
Customer Reviews
Filter reviews by:
Solid power supply
I purchased a P21KX for a 50 watt GMRS base station. I wanted a power supply (PS) that would be effectively noise free on both the power line input and the 13.8v DC output. This PS has been solid. It holds its voltage under load. It does not radiate emf or inject electrical noise back into the power line. I would buy this again and I will likely buy other Pyramid products in the future.
