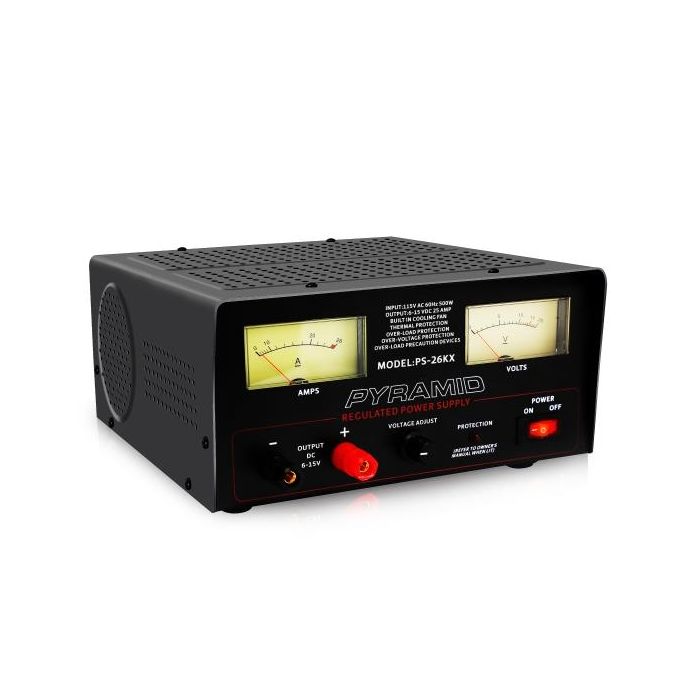

Pyramid PS26KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (22 Amp)
Pyramid PS26KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (22 Amp)
SKU: PS26KX
Pyramid PS26KX is a 22 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's great for converting mobile two way radios to base stations.
Discontinued
Description / Pyramid PS26KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (22 Amp)
Pyramid PS26KX is a 22 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's great for converting mobile two way radios to base stations.
Features:
Technical Specs:
Features:
- Genuine Pyramid linear/regulated power supply
- AC-to-DC power conversion (12V DC)
- Provides constant source of DC voltage
- Simple electronic plug-in operation
- Hassle-free screw terminal connectors
- Eliminates the need of battery or external power source
- Analogue gauge amperage and voltage metered display
- Rotary control voltage level adjustment
- Fuse protected with auto-reset
- Electronic overload & short circuit protection
- Used for component & device equipment testing, operation & performance
- Rugged & durable housing construction, cabinet heatsink
- LED Indicator Light
- Built-in cooling fan
- Power ON / OFF switch
- Pyramid Compact Hobby Power Supplies are safe for tabletop placement
- Part number: PS26KX
- Works with mobile two way radios
Technical Specs:
- Amperage: 22.0 AMP (Constant), 25.0 AMP (Surge)
- Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)
- Power Output: 6-15V DC, Adjustable
- Power Input: 115V AC, 60Hz (500 Watt)
- Dimensions (L x W x H): 11.8'' x 9.1'' x 7.1'' -inches
- Weight: 19.25 lbs.
More Information
| Type | Linear |
|---|---|
| Features | Amp Meter, Fan, Overload Protection, Volt Meter |
| Maximum Amps | 22 |
| Mount Style | Desktop |
| Warranty | 1 Year |
Downloads
Loading...
Customer Reviews
Filter reviews by:
good power supply
At this time of writing, I have not tested this power supply, but it well made and exactly what I was looking for. I plan to use to help restore a tube car radio It will be used to power it up. I like the fact that I can lower it to 6 volts. and raise it to 12 volts this is second pyramid power supply that I purchase first one was very good.
