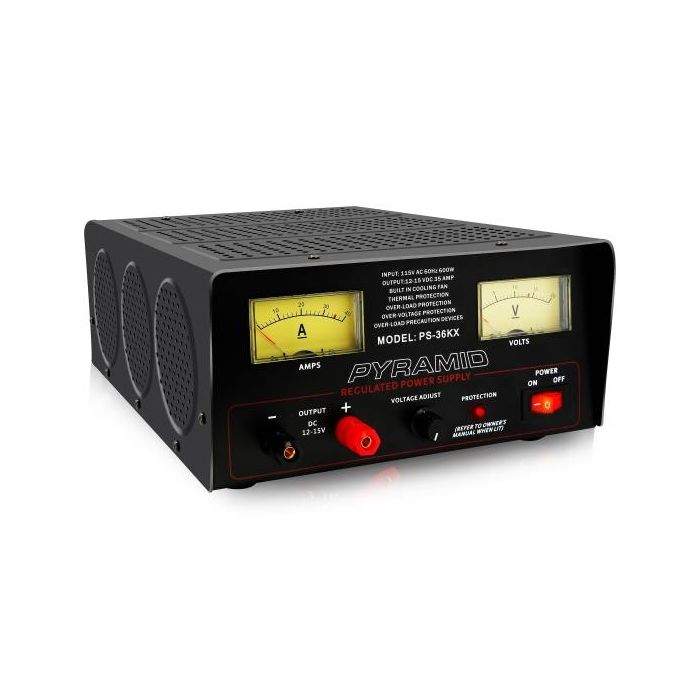

Pyramid PS36KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (32 Amp)
Pyramid PS36KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (32 Amp)
SKU: PS36KX
Pyramid PS36KX is a 32 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's great for converting mobile two way radios to base stations.
Discontinued
Description / Pyramid PS36KX Bench Power Supply, AC-to-DC Power Converter with Adjustable Voltage Control (32 Amp)
Pyramid PS36KX is a 32 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's great for converting mobile two way radios to base stations.
Features:
Technical Specs:
Features:
- Genuine Pyramid linear/regulated power supply
- AC-to-DC power conversion (12V DC)
- Provides constant source of DC voltage
- Simple electronic plug-in operation
- Hassle-free screw terminal connectors
- Eliminates the need of battery or external power source
- Analogue gauge amperage and voltage metered display
- Rotary control voltage level adjustment
- Fuse protected with auto-reset
- Electronic overload & short circuit protection
- Used for component & device equipment testing, operation & performance
- Rugged & durable housing construction, cabinet heatsink
- LED Indicator Light
- Built-in cooling fan
- Power ON / OFF switch
- Pyramid Compact Hobby Power Supplies are safe for tabletop placement
- Part number: PS36KX
- Works with mobile two way radios
Technical Specs:
- Amperage: 32.0 AMP (Constant), 35.0 AMP (Surge)
- Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)
- Power Output: 12-15V DC, adjustable
- Power Input: 115V AC, 60Hz (600 Watt)
- Dimensions (L x W x H): 14.0'' x 9.1'' x 4.9'' -inches
- Weight: 24 lbs.
More Information
| Type | Linear |
|---|---|
| Features | Amp Meter, Fan, Overload Protection, Volt Meter |
| Maximum Amps | 32 |
| Mount Style | Desktop |
| Warranty | 1 Year |
Downloads
Loading...
Customer Reviews
Filter reviews by:
Strong and Reliable but somewhat noisy.
Heavy product, but seems well made, and looks good.
The fan clacks some when starting up or spinning down, running it’s a tank just fairly noisy in the room.
This item has weight and needs a fair bit of room, but is Rock solid…
If it was quieter it might have gotten a 4.5
The fan clacks some when starting up or spinning down, running it’s a tank just fairly noisy in the room.
This item has weight and needs a fair bit of room, but is Rock solid…
If it was quieter it might have gotten a 4.5
