Pyramid PS52KX Bench Power Supply AC-to-DC Power Converter with Adjustable Voltage Control - Rack Mount (50 Amp)
Pyramid PS52KX Bench Power Supply AC-to-DC Power Converter with Adjustable Voltage Control - Rack Mount (50 Amp)
SKU: PS52KX

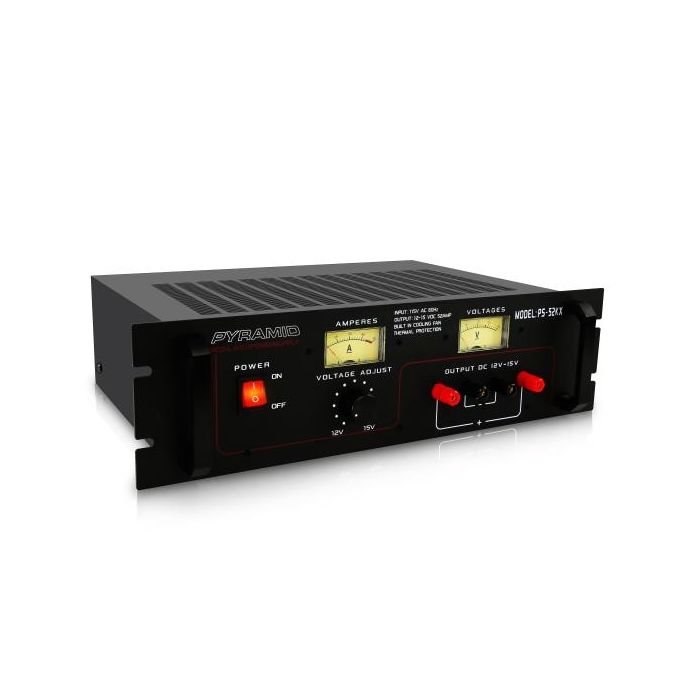

Pyramid PS52KX is a 50 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's rack mountable for work desk or equipment testing station.
Discontinued
Description / Pyramid PS52KX Bench Power Supply AC-to-DC Power Converter with Adjustable Voltage Control - Rack Mount (50 Amp)
Pyramid PS52KX is a 50 Amp bench power supply and AC-to-DC power converter with analogue gauge amperage and voltage metered display. It's rack mountable for work desk or equipment testing station.
Features:
Technical Specs:
Features:
- Genuine Pyramid linear/regulated power supply
- AC-to-DC power conversion (12V DC)
- Provides constant source of DC voltage
- Simple electronic plug-in operation
- Hassle-free screw terminal connectors
- Eliminates the need of battery or external power source
- Analogue gauge amperage and voltage metered display
- Rotary control voltage level adjustment
- Fuse protected with auto-reset
- Electronic overload & short circuit protection
- Used for component & device equipment testing, operation & performance
- Rugged & durable housing construction, cabinet heatsink
- Rack mountable
- Built-in cooling fan
- Power ON / OFF switch
- Pyramid Compact Hobby Power Supplies are safe for tabletop placement
- Part number: PS52KX
- Works with mobile two way radios and two way radio repeaters
Technical Specs:
- Amperage: 46.0 AMP (Constant), 50.0 AMP (Surge)
- Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)
- Power Output: 12-15V DC, Adjustable
- Power Input: 115V AC, 60Hz (1000 Watt)
- Wall Plug: 3 Prong Grounded AC
- Dimensions (L x W x H): 12.0'' x 19.0'' x 4.5'' -inches
- Weight: 40 lbs.
More Information
| Type | Linear |
|---|---|
| Features | Amp Meter, Fan, Overload Protection, Volt Meter |
| Maximum Amps | 46 |
| Mount Style | Desktop, Rack Mount |
| Warranty | 1 Year |
