When you need a compact, wireless solution for on-site communications, the Ritron Liberty Repeater is ready to deliver!

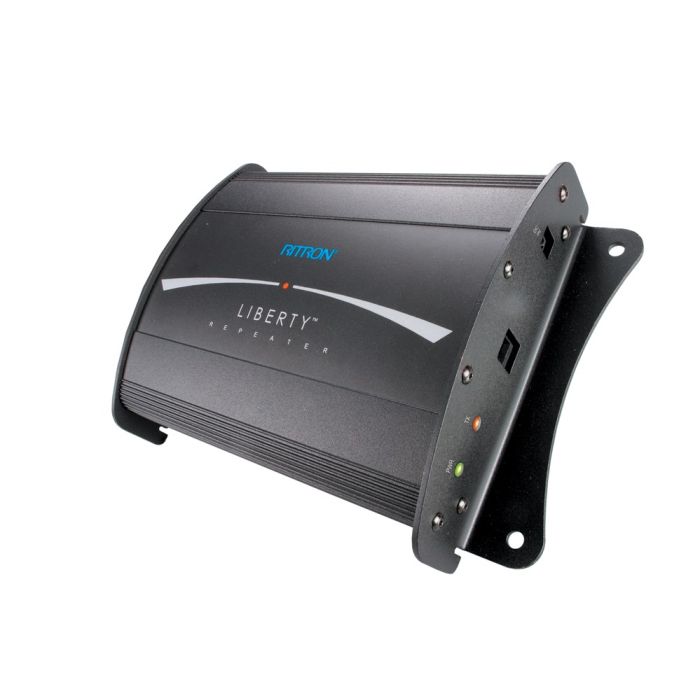

The RLR-465-N Liberty Repeater is a 5 watt, full duplex repeater specifically designed for areas in which two way radios alone are not quite able to cover. Golf courses, warehouses, industrial plants, schools, stores, schools, and other locations that are just a little larger than a handheld can handle on its own can now get the full radio coverage they need at minimal cost.
The Liberty Repeater offers solid radio communication from one
radio to the next to practically eliminate dead spots and fading with your radio signals. It features a completely integrated 450-470 MHz UHF narrowband full duplex repeater and duplexer 1 channel with 1 CTCSS or 2 DCS Tones. It also has a type N connector antenna port and RPS-1500 10VAC-12VDC 1.5A power supply.
The Liberty Repeater is small, but rugged. It is enclosed in a powder coated, all-metal, extruded aluminum housing with built-in mounting flanges for easy installation where you need it.
When you need more radio coverage than your two way radios can provide on their own, a Ritron Liberty Repeater can give your wireless communications that extra boost you need.
Note: antenna required (not included).
Ritron RLR-465-N Liberty Repeater Features
- 1 Channel
- 450-470 MHz Narrowband UHF Frequencies
- 5 Watt
- LED Indicators
- RJ-12 Jack For Remote Speaker Microphone
- 110VAC to 12VDC Wall-Mount Power Supply
- 1 Year Manufacturer Warranty
Included with the Ritron RLR-465-N Liberty Repeater
- Ritron RLR-465-N Integrated Liberty Repeater With Duplexer
- RPS-1500 10VAC-12VDC @1.5 Amp Power Supply
Ritron RLR-465-N Liberty Repeater Specifications
- Dimensions: 2.125" H x 8.0" W x 5.75" D
- Weight: 3.5 lbs.
- Antenna Connector Type: N Female
The Liberty Repeater requires an external antenna (not included).
We recommend the Ritron RAM-45 Magnetic Mount BNC Wire Antenna. This antenna includes a 12 Ft. coax cable that can be mounted almost anywhere a that magnet will hold.
For something a little more flexible, consider the AFB-1545 Ritron Jobcom Replacement Flex Antenna. This dual band VHF/UHF flexible whip antenna can pivot at a 90° for greater versatility. Note: When used with the Liberty repeater, this antenna requires a type N male to BNC female connector adapter part number 02100380 (not included).
