Tram Tramflex RG-8X Stranded Center Low Loss RF Coax Cable - Custom Length (per foot)
Tram Tramflex RG-8X Stranded Center Low Loss RF Coax Cable - Custom Length (per foot)
SKU: 8X-B-1-MR
Tram 8X-B coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Out of stock
From $0.38
To $34.36
Description / Tram Tramflex RG-8X Stranded Center Low Loss RF Coax Cable - Custom Length (per foot)
Build your own cable!
Tram 8X-B coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

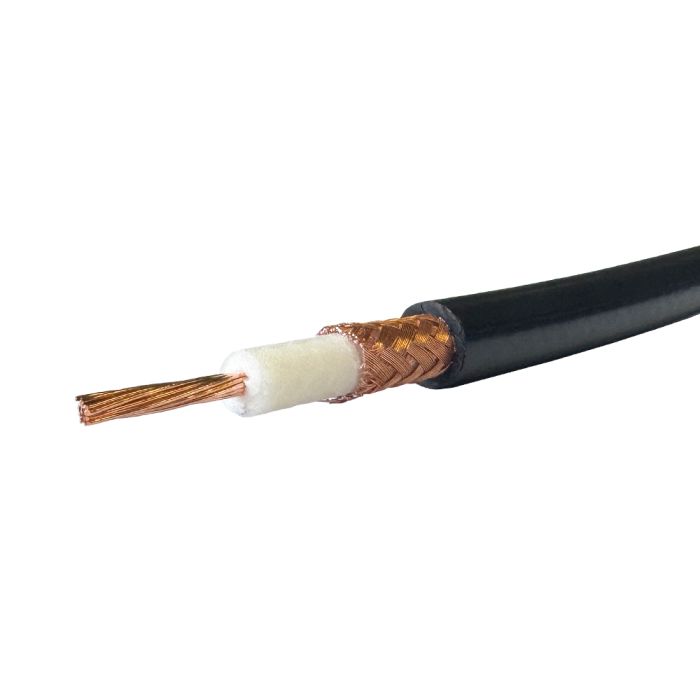

Tram Tramflex 8X-B Cable
- RG-8X type
- Bare copper braid 95% aluminum foil shield
- 50 ohms
- 78% Velocity
- Stranded bare copper center conductor 19/29 ga. (0.011"/19/0.287mm)
- Polyethylene foam insulation 0.155'/3.94mm
- Capacitance: 25.90 pF/ft. (85.00 pF/m)
- Black PVC jacket 0.242" (6.15mm)
More Information
| Coax Size | .240" / RG-8X / 7mm |
|---|
