Tram RG-8X Double Shield Coaxial Cable Custom Length (per foot)
Tram RG-8X Double Shield Coaxial Cable Custom Length (per foot)
SKU: 8XF-G-1-MR
Tram 8XF-G is double shielded coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Discontinued
Description / Tram RG-8X Double Shield Coaxial Cable Custom Length (per foot)
Build your own cable!
Tram 8XF-G is double shielded coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

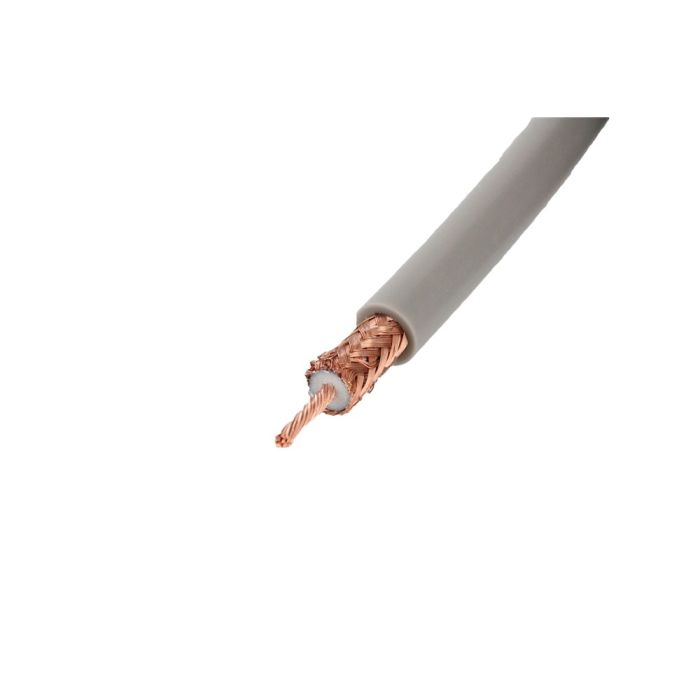

Tram Double Shielded RG-8X Cable
- RG-8X type
- Bare copper braid 95% aluminum foil 50 ohms 78% VOP
- Stranded bare copper center conductor 19/29 ga. (0.011"/19/0.287mm)
- Polyethylene foam insulation 0.155'/3.94mm
- Capacitance: 25.90 pF/ft. (85.00 pF/m)
- Gray PVC jacket 0.242" (6.15mm)
8XF-G Attenuation
| Frequency MHz | Attenuation db/ft. |
Attenuation dB/m |
|---|---|---|
| 100 | 3.69 | 12.10 |
| 200 | 5.40 | 17.7 |
| 400 | 7.99 | 26.20 |
| 700 | 11.10 | 36.40 |
| 900 | 12.80 | 42.00 |
More Information
| Coax Size | .240" / RG-8X / 7mm |
|---|
