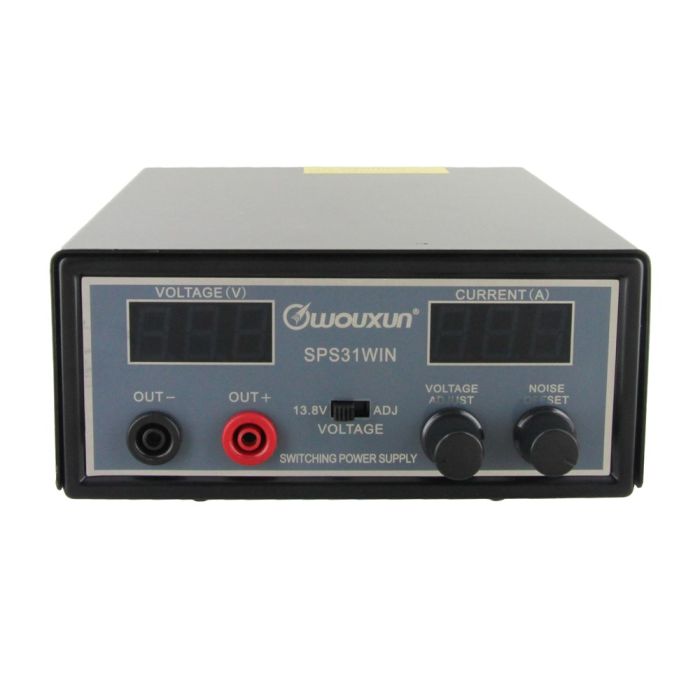

Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD

Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD

SKU: SPS31WIN

The Wouxun SPS31WIN is a 30A switching power supply with two digital LCD meters that lets you turn your Wouxun or other mobile two way radio into a base station. It works with most mobile two way radios, including the Wouxun KG-UV920P and KG-UV950P Mobile / Base Two Way Radio.

Discontinued

A newer product is available:
Wouxun DWC30WIN 30A Switching Power Supply with LCD Display

Jump to: Description Related Articles Reviews

Description / Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD

The Wouxun SPS31WIN is a 30A switching power supply with two digital LCD meters that lets you turn your Wouxun or other mobile two way radio into a base station.

Wouxon switching power supply
Model SPS31WIN
AC Input Switch: 110V AC/60Hz (default setting) or 220V/50Hz
Output voltage: 13.8V DC - adjustable between 9.0 and 15.0 V
Output voltage regulation: less than 2%
Protection: short-circuit - Automatic current limiting within 30A
Output current: 30A(max) 20A(continuous)
Ripple: less than 80mVp-p at rated load
Fuse: 5A
Meter: single volt/current meter - backlit LCD
Dimensions: 155mm(W)x70mm(H)x230mm(D) (projections not included)
Weight: approx. 1.5kg. (3.10 lbs.)
Works with most mobile two way radios, including the Wouxun KG-UV920P and KG-UV950P Mobile / Base Two Way Radio
One year warranty

More Information

Type	Switching
Features	Amp Meter, Fan, Overload Protection, Volt Meter
Maximum Amps	30
Mount Style	Desktop
Warranty	1 Year

Customer Reviews

4.9/5 Based on 6 reviews

83% (5)
17% (1)
0% (0)
0% (0)
0% (0)

Filter reviews by:

With Images (0)

Verified buyers (0)

Your Country (0)

Good, but not Great !!!

1/3/16

Review by ecolive

This new model works fine... and it looks good too. My only negative comment is that it seems a bit noisier (RF interference) than the previous model, mostly on 40 and 80m. Although the offset button helps to shift the RF interference to another frequency, one needs to use the offset every 30KHz or so, when scanning through the 40m band. I have not seen this issue with the previous model.

Happy with it!

2/10/16

Review by Big Tom

This product works really well, and is quiet as can be!

Just the thing I needed to complete my base unit.

2/19/18

Review by DonS

I bought this unit to support my Midland MXT400 radio. Everything works awesome. There is no noise or interference with the power supply, and everything works, as it should. Would buy again with no reservation.

Great power supply

3/11/18

Review by Roger

Works well!

I would buy this gain from Best Two Radios

7/13/18

Review by Tech in Pine

I ordered the power supply as mu first mobile/base station setup. There was an issue with the initial delivery but Best Two Way Radios took care of my issue quickly. The setup of the Power Supply was super easy and is operating as expected.

Great Power Supply.

1/18/20

Review by boris essipov

Great power supply i am happy with it. Delivery was Great
on time love it.Unit will Support my ic-5100 and ic-7300 HF
Radios.

zl1tbe boris
