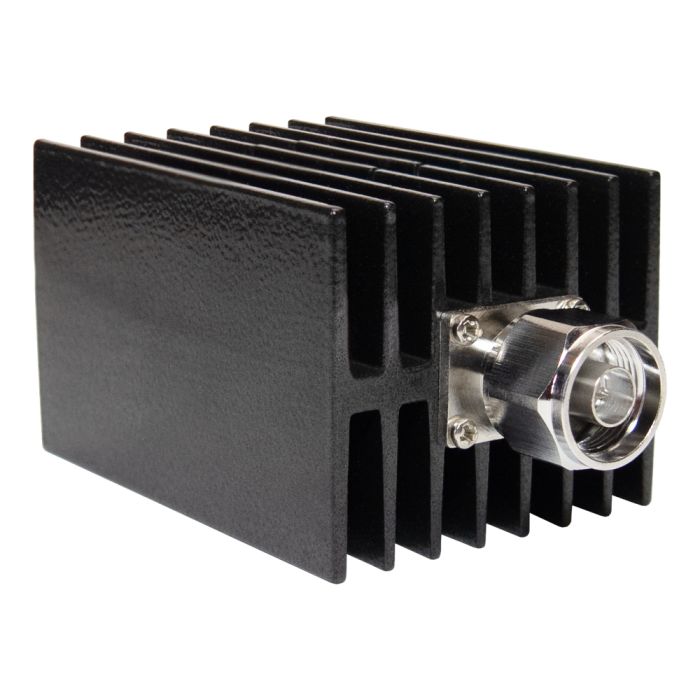

XLT 50 Watt Dummy Load w/ N Female Connector / SO-239 (UHF Female) Adapter

Home
XLT 50 Watt Dummy Load w/ N Female Connector / SO-239 (UHF Female) Adapter

Product was successfully added to your shopping cart.

Details

The XLT DL-50B-UF is a 0~3GHz coaxial RF dummy load with N female connector and SO-239 (UHF Female) adapter for mobile and base station two way radios.

Genuine XLT coaxial RF dummy load
Frequency Range 0~3GHz
Model DL-50B-UF
Impedance 50 Ohm
PIM3 ≤-105dBc (+33dBm×2)
Dimensions 2.79 in. x 2.4 in. x 3.15 in. (71mm×61mm×80mm)
Weight 17.63 oz. (0.5KG)
Operating temperature -68°F～+140°F (-20℃～+60℃)
Operating Humidity ≤95%
Maximum power handling 50W
N Female connector with UHF Female (SO-239) adapter
V.S.W.R ≤1.2
Works with mobile and base station two way radios.

Additional Information

It works for testing review by Dave on 8/30/2022

Rating

It works for testing. But! not at all sure its supposed to work as good as it does as an antenna? I have no problem sending and receiving 400 yards to my repeater with a 4 watt HT using the dummy load. I may be wrong but at least in part its not really supposed to do that ?
XLT 50 Watt Dummy Load w/N Female connector SO239 UHF Female adapter. review by Scott on 4/4/2022

Rating

It work great for testing things like ht and moblie radios
