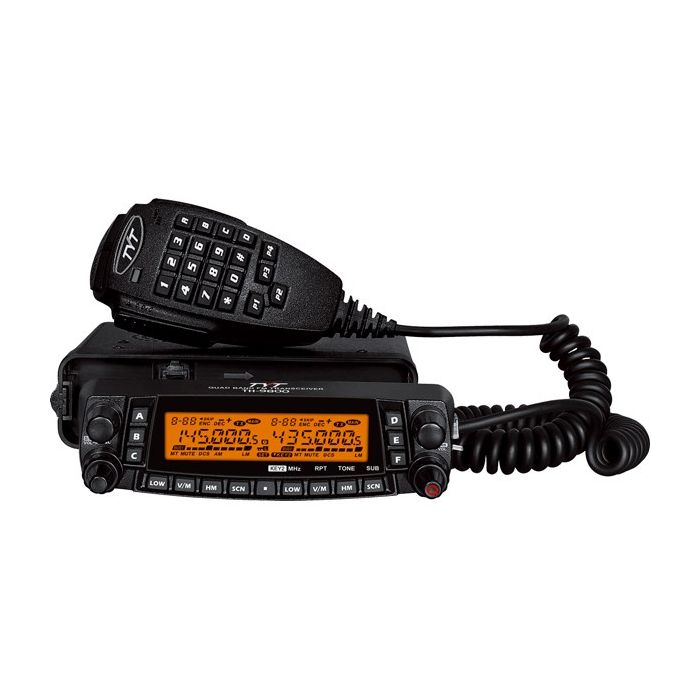

TYT TH-9800 Plus Quad Band Mobile Two Way Radio
TYT TH-9800 Plus Quad Band Mobile Two Way Radio
SKU: TH-9800
QUAD BAND!! PLUS VERSION!! DUAL DISPLAY!!
This radio has been approved by the FCC. Type accepted for Part 15B, FCC ID PODTH9800
Why settle for two bands when you can have four? With the TYT TH-9800 Plus Quad Band UHF/VHF mobile two way radio, now you can! The TH-9800 is a powerful transceiver with the high end features you expect from a TYT mobile at a low end price. It covers 26-33 MHz, 47-54 MHz and 144-148MHz with 50 watts on VHF and 420-450MHz with 40 watts on UHF, to provide maximum power for mobile communications at a minimal cost.
In stock
$199.99
Description / TYT TH-9800 Plus Quad Band Mobile Two Way Radio
This radio has been approved by the FCC. Type accepted for Part 15B, FCC ID PODTH9800
Why settle for two bands when you can have four? With the TYT TH-9800 Plus Quad Band UHF/VHF mobile two way radio, now you can! The TH-9800 is a powerful transceiver with the high end features you expect from a TYT mobile at a low end price. It covers 26-33 MHz, 47-54 MHz and 144-148MHz with 50 watts on VHF and 420-450MHz with 40 watts on UHF, to provide maximum power for mobile communications at a minimal cost.
The TH-9800 Plus gives you V/V, U/U and V/U simultaneous receive. It is also a V+U cross-band mobile repeater with full duplex capability. It has 800 memory channels with independent settings for each channel, user defined CTCSS and DCS codes, and 8 group voice scrambler. It also features a built-in fan to keep things cool while in operation.
The TH-9800 is loaded with extras, such as Automatic Repeater Shift (ARS), programmable memory scan, tone search scan, and DTMF signaling. It also includes Auto Range Transponder System (ARTS), a feature usually found on many Vertex Standard business radios.
TYT also equipped the TH-9800 with the large, dual frequency LCD display found on many of their other mobiles, plus a full featured backlit DTMF keypad on the handheld microphone. The front panel is detachable and can be relocated separately from the radio chassis. The included extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.
The TYT TH-9800 Plus comes with hand microphone, detachable front panel, mobile mounting bracket, mobile power cord, extension cable, hand microphone hook, fuses, screw packs, an owner's manual and a one year manufacturer warranty from TYT.
PLUS UPGRADE VERSION!!
Why settle for two bands when you can have four? With the TYT TH-9800 Plus Quad Band UHF/VHF mobile two way radio, now you can! The TH-9800 is a powerful transceiver with the high end features you expect from a TYT mobile at a low end price. It covers 26-33 MHz, 47-54 MHz and 144-148MHz with 50 watts on VHF and 420-450MHz with 40 watts on UHF, to provide maximum power for mobile communications at a minimal cost.
The TH-9800 Plus gives you V/V, U/U and V/U simultaneous receive. It is also a V+U cross-band mobile repeater with full duplex capability. It has 800 memory channels with independent settings for each channel, user defined CTCSS and DCS codes, and 8 group voice scrambler. It also features a built-in fan to keep things cool while in operation.
The TH-9800 is loaded with extras, such as Automatic Repeater Shift (ARS), programmable memory scan, tone search scan, and DTMF signaling. It also includes Auto Range Transponder System (ARTS), a feature usually found on many Vertex Standard business radios.
TYT also equipped the TH-9800 with the large, dual frequency LCD display found on many of their other mobiles, plus a full featured backlit DTMF keypad on the handheld microphone. The front panel is detachable and can be relocated separately from the radio chassis. The included extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.
The TYT TH-9800 Plus comes with hand microphone, detachable front panel, mobile mounting bracket, mobile power cord, extension cable, hand microphone hook, fuses, screw packs, an owner's manual and a one year manufacturer warranty from TYT.
Optional Programming Cable
For your convenience, an optional USB programming cable (Model TYT-PROG-MBL) is available to program the TYT TH-9800 from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
TYT TH-9800 Features
- 809 Memory Channels
- Quad Band
- 144-148MHz VHF Frequencies
- 420-450MHz UHF Frequencies
- 26-33 MHz/47-54 MHz / AM 108-136MHz (RX)
- Repeater Capable
- Cross-Band Repeater Function
- 8 Group Voice Scrambler
- 40W (UHF)/50W (VHF) Transmit Power
- Power Selectable
- Memory Channel
- Channel Scan
- Priority Scan
- Skip Channel
- Dual Watch
- Busy Channel Lockout
- Talk Around
- V+U Full Duplex Operation and Cross Band Repeat Function
- Automatic Repeater Shift (ARS)
- Companding
- CTCSS/DCS Encode/Decode
- CTCSS/DCS Tone Scan
- Backlit LCD Display
- Backlit Keypad
- Channel Name Edit and Display
- Auto Power Off
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- 3.5mm Speaker Port
- Cloning Capable
- PC Programmable (Requires Optional Cable)
- Programmable Buttons
- Internal Speaker
- Backlit DTMF Hand Microphone
- Cooling Fan
- Remote Front Panel Installation Option
- DTMF Encoding and Decoding
- Reset
- One Year Manufacturer Warranty
Included with the TYT TH-9800
- TYT TH-9800 Quad Band Mobile Two Way Radio
- DTMF Hand Microphone
- Mobile Mounting Bracket
- DC Power Cable With Fuse Holder
- Front Controller Separation Cable
- Front Controller Mounting Bracket
- Screw Packs
- Protection Fuses
- Owners Manual
TYT TH-9800 Specifications
- Dimensions: 140mm (W) × 41.5mm (H) × 168mm (D)
- Weight: 1.2 Kg
- Antenna Connector Type: SO-239 (UHF Female)
More Information
| Warranty | 1 Year |
|---|---|
| Maximum Output Power | 50 Watts |
| Radio Type | Base Station, Mobile |
| Services | Amateur |
| Integration | Repeater Capable |
| Frequency Bands | 10 Meter, 2 Meter (VHF), 6 Meter, 70 cm (UHF) |
Downloads
Accessories
Loading...
Customer Reviews
Filter reviews by:
I would suggest this radio this radio to everyone!!!
I use on ham&fire band,s excellent on both bands!!!
Flexible operation
While this might not be the top quality of the major name brands, it has proved to be very versatile and dependable so far. This will be my second TH-9800. I have found that in addition to the VHF, UHF, 10M FM and 6M FM, it can operate very well on GMRS as well as other frequencies you might need depending on your occupation. It will also operate on FRS and MURS although it's minimum transmit power is 5w, a little more than allowed on those two bands. I have fabricated a bracket and wired up a 12V computer fan to aid in keeping mine cool when under heavy use and that seems to keep it happy. I have been pleased with this product.
Great radio!
This radio is feature packed, and small in size.
This is the perfect tranciever for me!
Ive had this radio for a few weeks now and I am very pleased. I use it on ham bands as well as gmrs. The output power is a few watts more than advertised which was unexpected but fine with me... hihi. I am going to buy another one for the xyl's vehicle. It is simple to program without software and easy to use.
My handhelds had a hard time hitting the repeater, so...
I bought this, and connected it to a homebrew UHF/VHF antenna from QST in the 80's, and now my signal is coming through loud and clear (according to my fellow amateurs). Easy to set up and use, powerful amp. Would buy again.
Pleased with Radio
I was suprized when I went through some areas that would normally generate problems with RF and did not have any problems. Generally a decent rig. The beep on the scan when it stops on a frequency is loud and I got a complaint about the mike being too "hot" Had to adjust the bandwidth to middle bandwith...it picks up the blower on the air conditioning..other wise it is greatr
Good Radio
This is a nice little radio. Works great and price is good too. Got this for radio go box. Going to get one for car.
I would by the radio again I have been very happy with it
The only question I have is that it sounds like the fan runs all the time is that normal
Good radio, get it
Great radio. So I placed an SWR meter on it and with no other work, came out 1.2 and worked right out of box. Not bad... Even at 10m and 6m... Very cool. I was like WOW!... Nice. OK, this babe going in my truck.
Since you're sold out, I plan on getting a few more... Get this radio but wait until I buy mine first.
Since you're sold out, I plan on getting a few more... Get this radio but wait until I buy mine first.
replaced my kenwood 742
didnt want to program 300 channels after replacing the internal battery on my kenwood tribander and got this radio to try.
used chirp to set up the 800 channels and really like it , handles signal overload pretty well , tends to go a little deaf and not get all intermod'e on scanning... also a plus. support area on yahoo group's .
used chirp to set up the 800 channels and really like it , handles signal overload pretty well , tends to go a little deaf and not get all intermod'e on scanning... also a plus. support area on yahoo group's .
