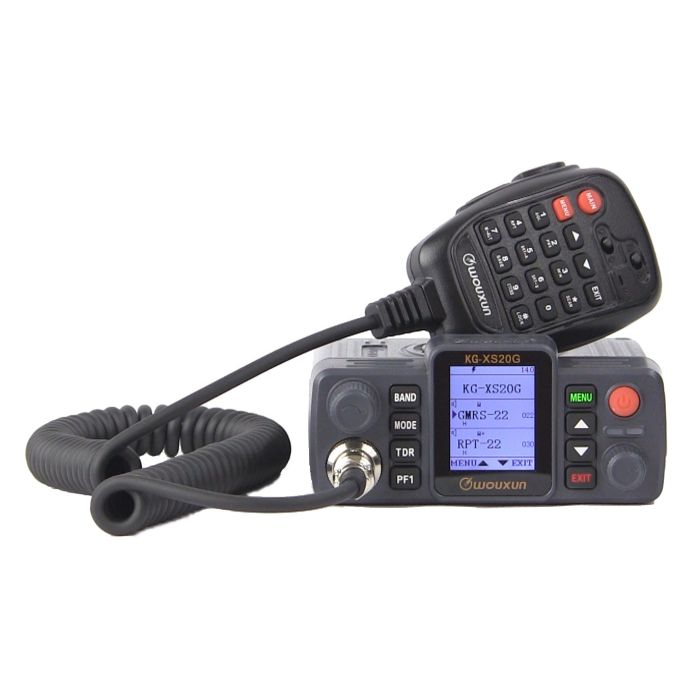

Wouxun KG-XS20G Plus GMRS Base/Mobile Two Way Radio
Wouxun KG-XS20G Plus GMRS Base/Mobile Two Way Radio
NOAA WEATHER MODE!!
In Stock
Description / Wouxun KG-XS20G Plus GMRS Base/Mobile Two Way Radio
You want the powerful versatility of a premium GMRS mobile radio, but without the premium price? You get it all with the Wouxun KG-XS20G! It takes the best features of a full size mobile radio and puts it all into a very compact package that fits into most any vehicle with ease. And it does all this at a price that won't wallop your wallet. It's not your typical mobile GMRS radio!
The KG-XS20G has 30 GMRS channels, including 8 repeater channels, and can receive on dual UHF and VHF bands. It has NOAA weather channels with alerts, and has a built-in FM radio. It's not your typical in-dash car radio, to be sure.
The XS20G is loaded with features, some that are standard on a few other mainstream GMRS mobiles, but many more that aren't. These include 999 programmable memory channels, simultaneous dual channel receive, channel and frequency modes, wide and narrow bandwidth options, and support for both standard and non-standard CTCSS/DCS tones.and codes, plus split tones and tone scan. It has channel scan, priority channel scanning, and the ability to create up to 10 scan groups. This is not your basic mobile GMRS radio.
Other features include group call, all call and select call options, compander, DTMF encode and decode, high and low power selectivity, single tone pulse frequency, reverse frequency, talk around, an SOS function, English voice prompts and a stopwatch timer. Again, not a basic mobile GMRS radio.
The KG-XS20G is as functional outside the case as it is within. It sports a full color dual channel LCD display that's easy on the eyes. It can display one or both A and B areas of the radio, as well as channel names, numbers or frequencies, plus Caller ID and info on vehicle voltage. A powerful speaker is built into the top of the unit, with ample volume to be heard above noise on the road. A 3.5mm jack on the back of the radio allows you to connect an external speaker as needed.
It's also quite rugged. The Wouxun XS20G is rated IP65 for dust ingress and water resistance and the hand microphone is rated IP55, which makes this a great GMRS radio to take on off-road adventures!
The KG-SX20G includes a handheld speaker mic with a full DTMF keypad. It has TX and RX LED indicators and a volume knob for independent control of the audio on the front of the speaker mic. The keypad on the mic is also backlit for easier operation in the dark.
Speaking of versatility, the Wouxun XS20G is also fully PC programmable. The radio also includes two programmable function keys that can be customized either with the programming software or directly from the menu on the radio itself. One key is located on the front panel of the radio, the other on the side of the hand speaker microphone. Each can be independently programmed to activate two specific features, one with a short press of the key, the second with a long press. Once more, not your typical GMRS mobile.
In addition to its primary function as a mobile radio, the KG-SX20G can also be powered by an optional Wouxun Power Supply (sold separately) to turn your GMRS mobile receiver into a fully operational GMRS base station! How's that for versatility?
The Wouxun SX20G comes with a handheld speaker microphone, mobile mounting bracket, mobile power cord, 12V vehicle power cord, hand microphone hook, fuses, screw set, an easy to understand owner's manual in plain English and a one year manufacturer warranty from Wouxun.
Optional Power Supply
Turn your Wouxun KG-XS20G mobile radio into a full-featured fixed base station with the Wouxun DWC30WIN Power Supply!
This 30A switching power supply has an output voltage of 13.8V DC and is adjustable between 9V and 15V! It offers automatic current limiting within 30A for protection from short-circuits and includes a large LCD display with digital meter for high visibility.
The KG-XS20G and DWC30WIN combo is a great option for those who want a powerful base station without the powerfully high cost!
Optional Programming Cable
For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-XS20G from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-XS20G Series Questions and Answers
Extra channels are useful for many reasons. If you access different repeaters that use the same frequency but different tones, it's more convenient to add each combination to it's own channel instead of changing tones through the menu. Channels can also be given friendly names instead of a simple number, and the default channel names can be customized.
A programming cable is required to customize the radio through the software. Check the Accessories tab above for options.
Videos
Wouxun KG-XS20G Features
- 30 GMRS Channels
- 8 Built-In GMRS Repeater Channels
- 999 Custom Memory Channels
- 136-174.995 MHz Receive Only VHF Frequencies
- 400-479.995 MHz Receive Only UHF Frequencies (70cm)
- Built-in NOAA Weather Channels
- Weather Alerts
- Repeater Capable
- Tune Specific Frequencies Directly (Frequency Mode)
- Simultaneous Dual Channel Receive
- 20W Maximum Transmit Power
- FM Radio
- High/Low TX Power Levels
- Channel Scan
- Priority Scan
- Supports 10 Scan Groups
- CTCSS/DCS Tone Scan
- Wide/Narrow Bandwidth Selectable
- Talk Around
- Busy Channel Lockout
- Companding
- Standard and Non-Standard CTCSS/DCS
- Split CTCSS/DCS Tone Support
- Color Dual Channel Display
- Backlit Keypad
- Channel Name, Number or Frequency Display
- Minimum Operating Voltage Settings
- Voltage Display
- Timeout Timer
- Keypad Lock
- Stopwatch Timer
- Audible Button Beeps
- English Voice Prompts
- 3.5mm External Speaker Port
- Group Call, All Call and Selective Call
- Incoming Caller ID Display
- PC Programmable (Requires Optional Cable)
- Built-in Speaker
- Multiple Speaker Output Settings
- 2 Programmable Keys
- Backlit DTMF Hand Microphone With Speaker
- DTMF Encoding and Decoding
- Single Tone Pulse Frequency
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-XS20G
- Wouxun KG-XS20G GMRS Base/Mobile Two Way Radio
- Hand Microphone (KG-WV11A)
- Mobile Mounting Bracket
- Mobile Power Cord
- Screw Sets
- Hand Microphone Hook
- 12V Vehicle Power Adapter
- 2 Fuses 15A 32V
- Owners Manual
Wouxun KG-XS20G Specifications
- Dimensions: 2.16 in. x 4.72 in. x 4.7 in. (55mm × 120mm × 119.5mm)
- Weight (Including Microphone): 22.36 oz. (634g)
- Power Requirement: 13.8VDC+/- 15% (Negative Grounded)
- Antenna Connector Type: SO-239 (UHF Female)
More Information
| Warranty | 1 Year |
|---|---|
| Quantity | Single |
| IP Rating | IP65 |
| FCC ID | WVTWOUXUN25 |
| Channels | 999 |
| Maximum Output Power | 20 Watts |
| Radio Type | Base Station, Mobile |
| Services | GMRS |
| Safety Features | NOAA Weather Channels |
| Digital Standard | Analog Only |
| Integration | Repeater Capable |
| Privacy Codes | Analog/Digital (CTCSS/DCS) |
