Wouxun KG-Q10G Programming and Menu Options

The Wouxun KG-Q10G is the latest of a new line of handheld radios known as the Q Series. It takes the best features of the KG-Q10H amateur model and the extremely popular KG-935G Plus GMRS transceiver and puts them all into one compact container to create an advanced communications device that rivals the performance of every other portable GMRS radio currently on the market.

The Q10G is one of the most powerful handheld radios out there that is FCC type accepted for the GMRS, with up to 6 watts of transmit power. It is also one of the most versatile, with the ability to also receive on a multitude of other bands, include NOAA weather frequencies, aviation, and commercial FM radio stations. This is no bubble pack radio from a big box store. It is a powerful GMRS radio intended for power users. The KG-Q10G is only available at Buy Two Way Radios.

KG-Q10G Key Features

• 30 GMRS Channels
• 8 Built-In GMRS Repeater Channels
• 40 Receive Only CB Channels (AM/FM)
• 999 Memory Channels
• 76-108 MHz (FM) Receive Only
• 108-136 MHz (Airband, AM) Receive Only
• 136-174 MHz (FM) Receive Only
• 222-225 MHz (FM) Receive Only
• 320-480 MHz (FM) (Receive Only)
• 714-999 MHz (FM) (Receive Only)
• 7 NOAA weather Channels
• NOAA weather alerts
• 5 Weather Alert Notifications
• Superheterodyne Receiver
• GPS Location Data Display
• Up to 6 Watts Maximum Transmit Power
• High/Mid/Low/Ultrahigh TX Power Levels
• Tune Specific Frequencies Directly (Frequency Mode)
• Simultaneous Dual Channel Receive
• Repeater Capable
• Standard and Non-Standard CTCSS/DCS Tones
• Split CTCSS/DCS Tone Support
• Channel Scan
• Priority Scan
• CTCSS/DCS Tone Scan
• Scan Group Support
• Favorite Channels
• Wide/Narrow Bandwidth Selectable
• Large Full Color Backlit LCD Dual Display
• 10 Display Color Theme Options
• 4 Customizable Display Themes
• Channel Name, Number or Frequency Display
• Incoming Caller ID Display
• Custom Display Messages
• Voltage Display
• Backlit Keypad
• Compander
• Decrambler
• DTMF Encoding and Decoding
• Reverse Frequency
• Group Call, All Call and Selective Call
• Timeout Timer
• Audible Button Beeps
• English Voice Prompts
• Transmit Overtime Alarm
• Scan Add/Delete
• Busy Channel Lockout
• Battery Meter
• Low Battery Alert
• Power Saver
• Talkaround
• VOX
• 2 Programmable Side Keys
• Programmable Top Key
• 2 Programmable PTT Keys
• Full Backlit Keypad
• Built-in Flashlight
• Remote Stun/Kill/Monitor/Inspect
• Stopwatch Timer
• Clock Display
• Keypad Lock
• Li-Ion Battery Pack (3000mAh)
• Rechargeable Battery Included
• USB-C Charging Port
• IP67 Dust and Waterproof
• Drop-In Charge Capable
• Audio Accessory Connector
• PC Programming Support
• Cloning Capable
• Factory Reset

Programming the KG-Q10G
There are only 30 channels assigned to the General Mobile Radio Service. These channels are pre set into all type accepted GMRS two way radios according to the FCC rules, and all of the Wouxun branded GMRS radios are pre-programmed to comply. Wouxun radios also feature additional channels that are user programmable for further customization. As it is with all Wouxun radios we carry, the KG-Q10G is fully programmable from a PC using a programming cable and the Wouxun KG-Q10G programming software or directly from the keypad of the radio itself.

Direct from the radio
Those who are familiar with programming other Wouxun radios will find the general procedure pretty much the same with this one. If programming a radio is a new experience for you, be assured that it is not at all complicated. The KG-Q10G owners manual is specifically written for both novices and experts to get you up to speed quickly. Like other Wouxun GMRS radios sold exclusively by Buy Two Way Radios, it is written in plain English with instructions that are easy to follow.

Using the Channel Wizard
First introduced in The KG-935G Plus, the KG-Q10G has a built in wizard to make it super easy to program a channel into the radio. Called the Channel Wizard, this is a new function that allows you to quickly and easily program a new channel or modify an existing channel direct from the keypad of the radio itself. With the Channel Wizard, you can add or clone new channels into the radio in mere seconds. You can also change the settings in any existing channel. The wizard lets you do all of this without scrolling through the menu to find and set each individual channel option, and without the need for programming software.

There are two ways to access the Channel Wizard. The first method is to method is to press [MENU] + [2] + [5] and the screen will display: CH-WIZARD. The second method is to assign the CH-WIZARD option to one of the programmable keys for instant access to it at one key press.

There are ten menu functions in the Channel Wizard, each with their own sub-menu. Go to the first menu item and press [MENU] to enter its sub-menu. Use the [UP] and [DOWN] arrow keys to choose the option you want from that sub-menu, then press [MENU] to enter your choice. This will take you back to the Channel Wizard menu to go to the next or previous Channel Wizard menu function.

The last Channel Wizard menu function is [SAVE-MODE]. You must choose this function to save your channel settings and add, clone or save your channel to the radio. You can choose to save your channel and create another channel or save the channel and exit the Channel Wizard.

Of course, you can opt to enter and save a channel or frequency independently through the individual menu items instead. While not as fast as the Channel Wizard, this method does allow you tweak a specific channel setting as needed.

The KG-Q10G is a powerful radio with a lot of great features. There are so many functions, it has two menus to access and configure them all. The Area Menu allows for the customization of specific channels or frequencies. The System Menu manages the general functions of the radio overall.

Area Menu
The KG-Q10G Area menu consists of 26 items. Default settings are bold.

Note: *The menu items in yellow are available in Frequency mode only.
**The menu items in green are available in Channel mode only.
***The menu item in red is only available on Area A and not available in all bands.

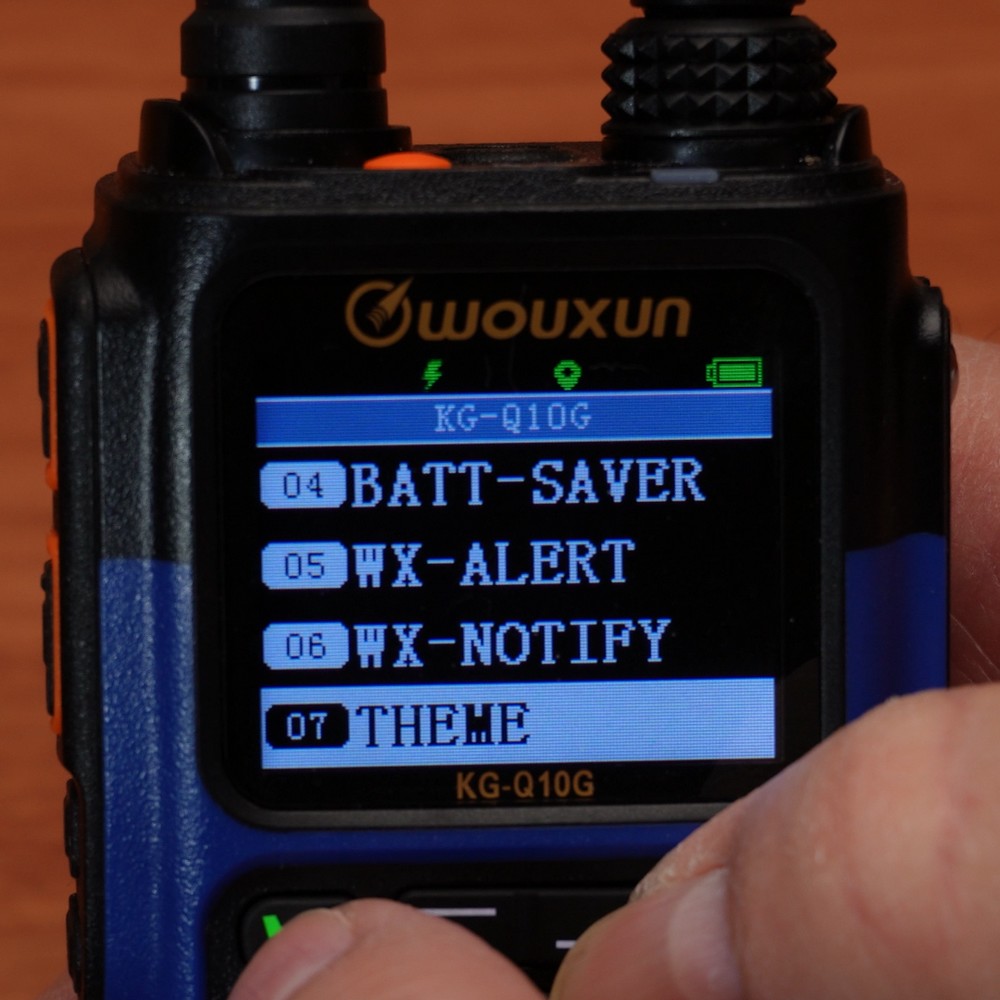

System Menu
The KG-Q10G System menu consists of 48 items. Default settings are bold.

Note: *The menu items in purple requires activation of GPS.
**The menu item in green only functions in FM Radio mode.
***The menu item in orange accesses the GPS sub-menu listed in the chart below.

GPS Location Sub-Menu
The KG-Q10H GPS Location menu consists of 4 items. Default settings are bold.

Programming with software
The KG-Q10G uses the same Wouxun PCO-001/PCO-009 USB programming cable that works with many other Wouxun handheld radios. Refer to the cable driver installation instructions for more information.

As with all other Wouxun radios, the KG-Q10G programming software is specific to this radio and is currently available for Windows PCs only. The programming software is located on the Wouxun KG-Q10G product page at Buy Two Way Radios.

KG-Q10G Operation
The KG-Q10G operates in much the same way as the ham version of the Q series with the full keypad, display and menu. If you already have a KG-Q0H, KG-935G Plus or other Wouxun radio that is field configurable, operating the KG-Q10G is essentially the same. Although some keys on the keypad may be different in label and function from some of the other models, they are not difficult to to use once you understand what they do.

The keys on the keypad and their primary functions are listed below:

The Wouxun KG-Q10G is the new top tier model in GMRS portable handheld radios. Features such as GPS Location tracking, USB-C charging, and dual menus give this radio maximum flexibility, portability,programmability, and style for the ultimate GMRS comms yet.
