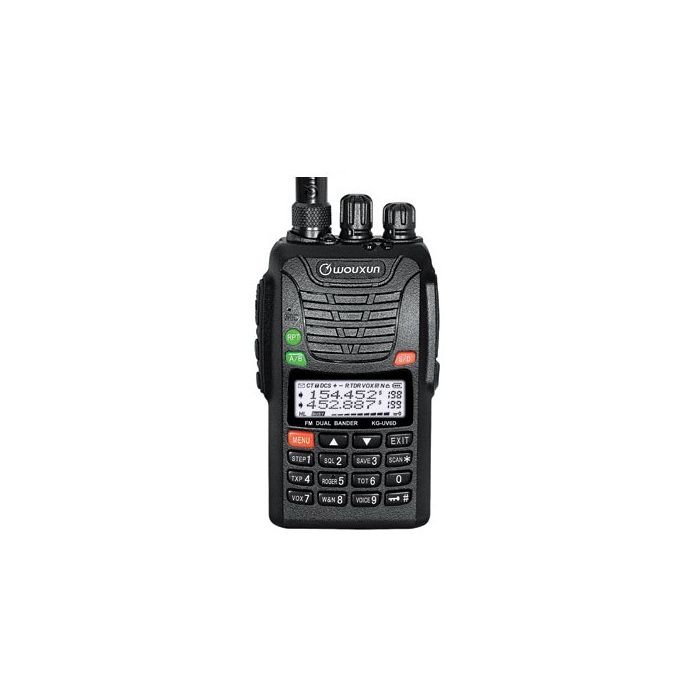

Wouxun KG-UV6D V2 Two Way Radio (136-174/420-520)

92 5 100 0

Quick Overview

The Wouxun KG-UV6D is a Dual Band, Dual Frequency UHF/VHF Two Way Radio loaded with powerful features at an affordable price. With 4 watts UHF and 5 watts VHF, the KG-UV6D provides the RF carrier power of a high end portable handheld without the high end cost.
Free Shipping

Availability: In Stock



This radio has been approved by the FCC. Type accepted for Part 90, FCC ID WVTWOUXUN07

The Wouxun KG-UV6D is a Dual Band, Dual Frequency UHF/VHF Two Way Radio loaded with powerful features at an affordable price. With 4 watts UHF and 5 watts VHF, the KG-UV6D provides the RF carrier power of a high end portable handheld without the high end cost.

The KG-UV6D features 199 programmable memory channels with CTCSS and DSC Scan, priority channel scanning, and 1750 Hz burst tone. It's bandwidth selectable, allowing you to select wide or narrow bandwidth at the press of a button. Bands can be freely set on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well, giving you the option to transmit in high or low power mode.

But the features don't end there. Wouxun has built in a lighted LCD display that is selectable in Channel Mode, and a Power-On display message that is customizable. The full featured keypad is also backlit and voice prompts assist you with menu navigation.

Want more features? Channel Name edit and display, Dual Standby, 76-108Mhz FM radio, DTMF encoding, Transmit Overtime Voice Prompt, low voltage voice prompt, channel name edit and display, SOS function, VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight are all standard on this radio.

The UV6D is also rated IP55 water resistant, a plus when taking it with you outdoors.

The KG UV6D is powered by 7.4v 1700mAh (12.58Wh) Li-Ion battery pack for many hours of operation. Power Saver Mode helps increase efficiency and preserve battery life.

The Wouxun KG-UV6D comes with a rechargeable Li-Ion battery pack, belt clip, removable antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.

Wouxun KG-UV6D Features

  • 199 Memory Channels
  • Dual Band
  • 136-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 420-520MHz UHF Frequencies (RX only) / 420-450MHz (TX only)
  • Repeater Capable
  • 4W/5W Transmit Power
  • Li-Ion Battery Pack
  • Rechargeable Battery Included
  • Battery Charger
  • FM Radio
  • SOS Feature
  • Memory Channel
  • Channel Scan
  • Priority Scan
  • Skip Channel
  • Dual Watch
  • Busy Channel Lockout
  • Reverse Frequency Function
  • CTCSS/DCS Tones
  • CTCSS/DCS Tone Scan
  • Backlit LCD Display
  • Backlit Keypad
  • Customizable Power-On Display Message
  • Channel Name Edit and Display
  • Battery Meter
  • Low Battery Alert
  • Power Saver
  • Auto Power Off
  • Timeout Timer
  • VOX
  • Keypad Lock
  • Audible Button Beeps
  • Drop-In Charge Capable
  • Audio Accessory Connector
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • IP55 Water Resistant
  • LED Flashlight
  • Stopwatch
  • DTMF Code
  • Reset
  • One Year Manufacturer Warranty

Included with the Wouxun KG-UV6D

  • Wouxun KG-UV6D Two Way Radio
  • Li-Ion Battery Pack
  • Removable Antenna
  • Belt Clip
  • Wrist Strap
  • Charger Tray
  • AC Cable
  • Owners Manual

Wouxun KG-UV6D Specifications

  • Dimensions: 65mm × 119mm × 39.5mm
  • Weight: 253g
  • Antenna connector type: SMA Female (Standard)

Additional Information

Warranty 1 Year
Maximum Output Power 5 Watts
Radio Type Handheld
Services Amateur
Safety Features Flashlight
Digital Standard Analog Only
Integration Repeater Capable
Frequency Bands 2 Meter (VHF), 70 cm (UHF)
  1. Maybe review by #! $$ on 3/23/2018

    Using for search and rescue

  2. Great radio! review by Coyotedave on 8/27/2017

    Rugged and easy to hold. Easy to program with computer.

  3. Good Radio review by Jim on 9/4/2016

    I will use it for Search and Rescue

  4. Works as expected review by KE6FE on 4/28/2016

    This radio replaces a Yaesu Vertex VX-10 (2000 vintage), The TX and RX performance are about the same. The "high gain" antenna which came with it is not bad, but a 1/4 dipole is much better for TX. The keys from manual programming are useful to the expert, but are too easily accidentally pressed, throwing the radio into unexpected modes. Get the programming cable to program in your frequencies etc. using a computer. Programming it from the keyboard is possible, but frustrating. The manual is detailed, but the English translation is poor.

  5. A strong well built radio. Recommend It review by Wild Bill on 11/30/2014

    I have had this for several months. I have used it on several searches and at the Fairgrounds and the Animal Disaster Response Team. It performs very well and is light to carry. Used with a speaker mic or an earbud mic it is great in noisy situations. This replaced a KG-UVD1P only because the 1P only had 5.0 khz steps. The D6P has 2.5 khz steps. The one design change that I don't like is when the key lock is on it doesn't lock the Channel selection knob. On the D1P it did. I solved this by removing the knob and just using the shaft.
